Outdoor Waterproof IP65 Modular 50W 100W 150W 200W 250W 300W 400W 500W Led Tunnel Light LED Flood Light

Product Description

High efficiency up to 130LM/W.
Universal Constant Current Voltage 100-277VAC, 50/60Hz.

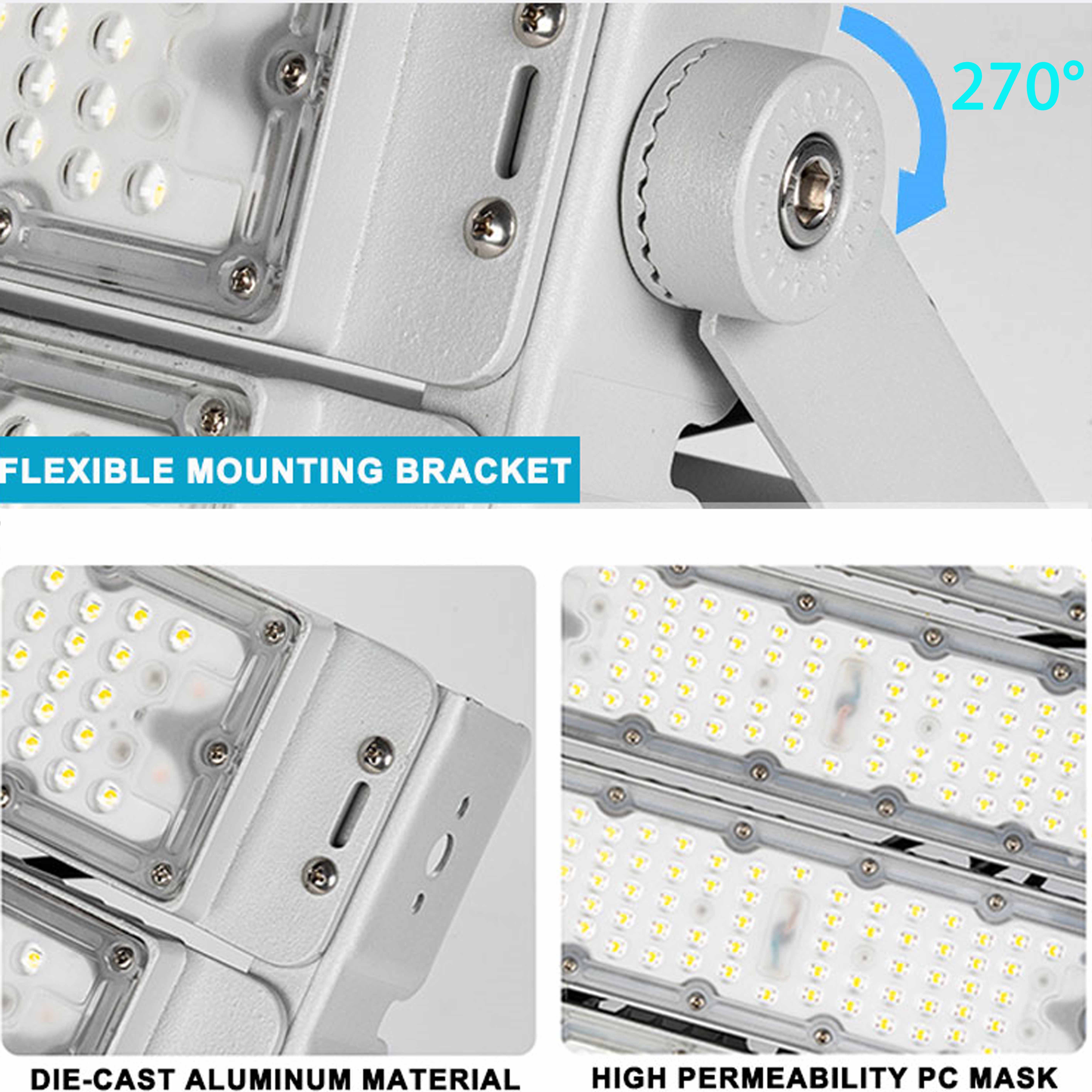

Die casting aluminum alloy lamp body for superior heat dissipation, firm and durable.
PC Lens and IK08 level protection for the whole lamp.
5 years warranty.

Product Presentation

This LED floodlight is a modern lighting source solution. Compared with traditional floodlights, these products feature high thermal conductivity, low light decay, and pure light output without ghosting. Designed for energy saving, environmental protection, and long service life.

Universal Constant Current Voltage 100-240VAC, 50/60Hz.
Power factor ≥0.9.
Working Condition Temperature: -40℃ to +50℃.
50,000 hours lifetime.

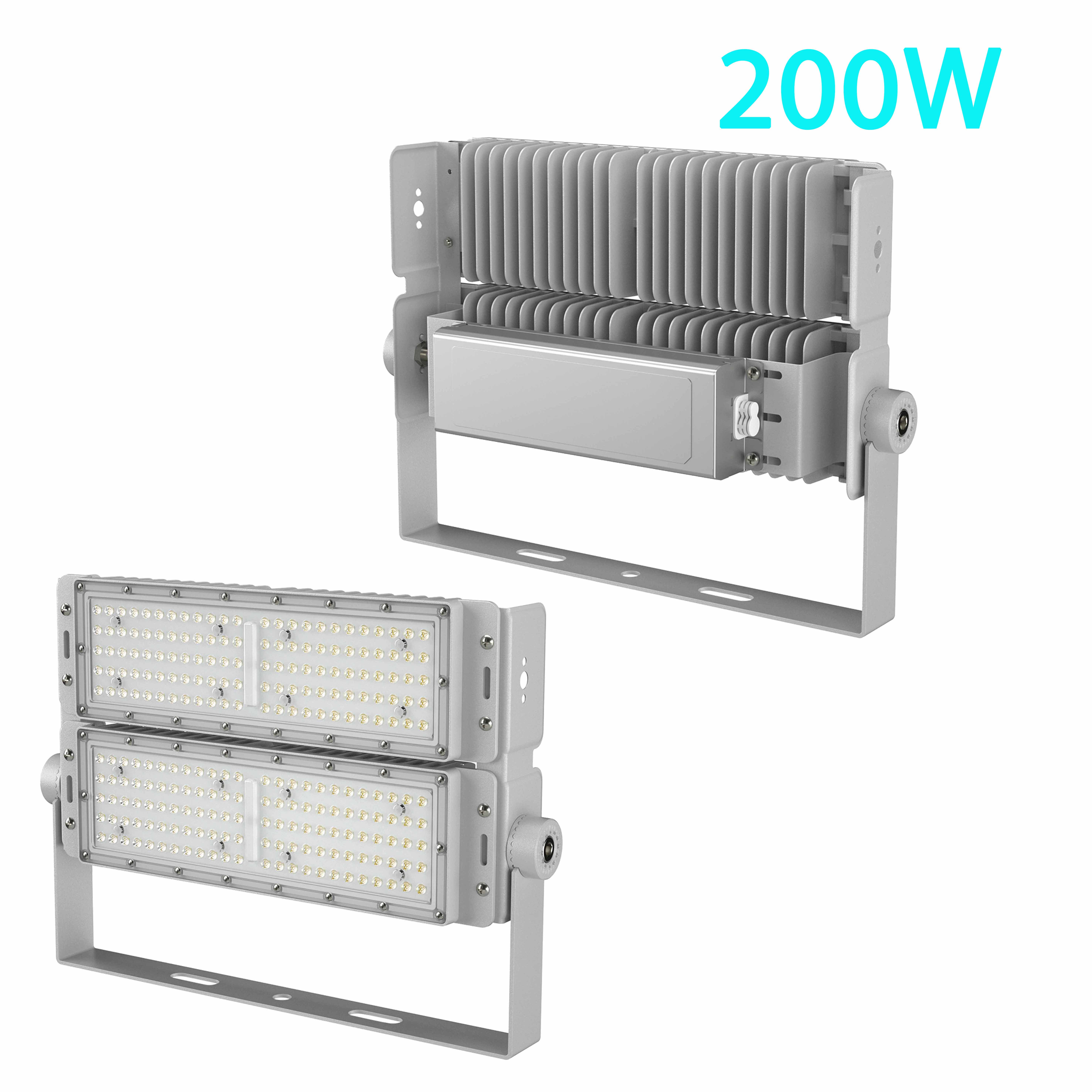

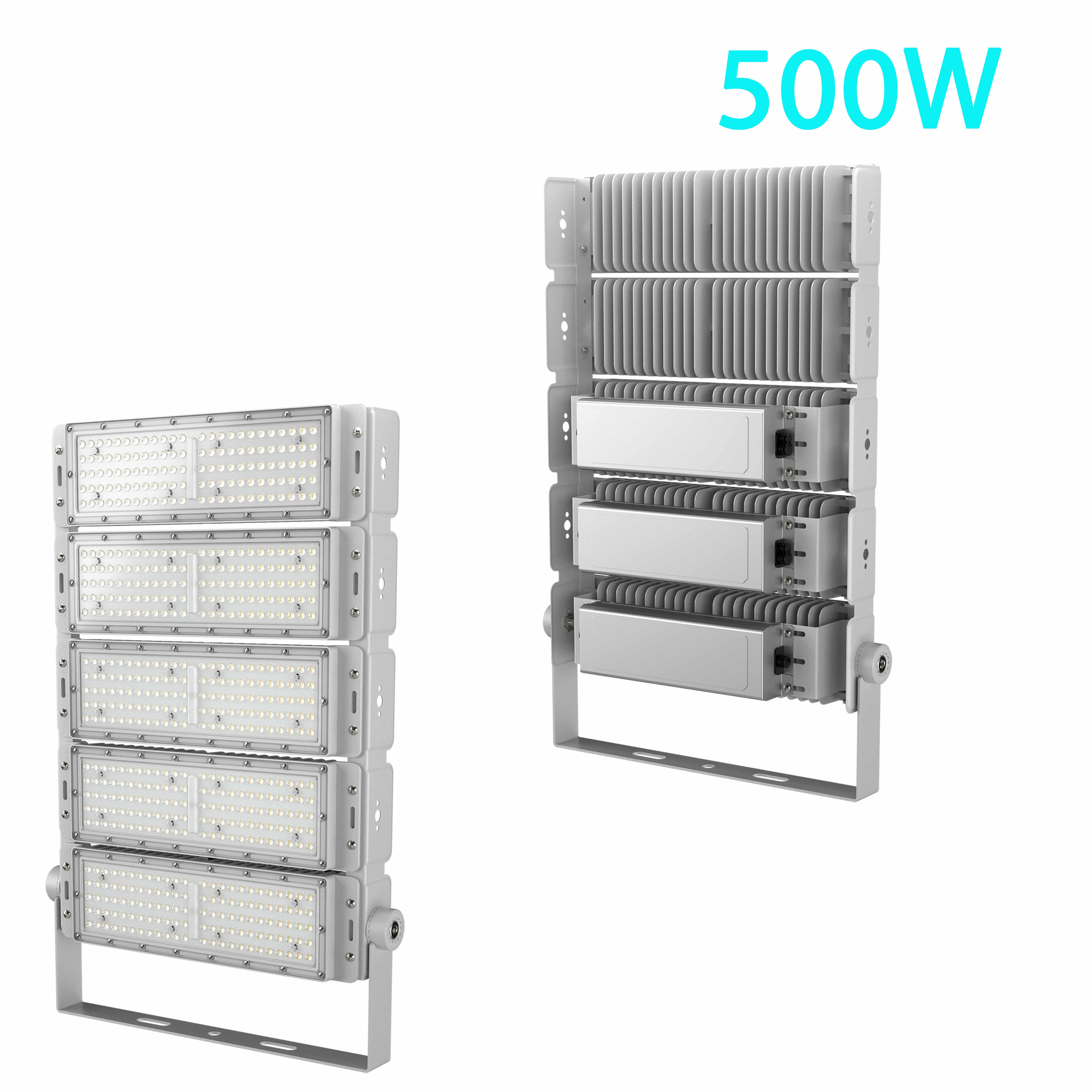

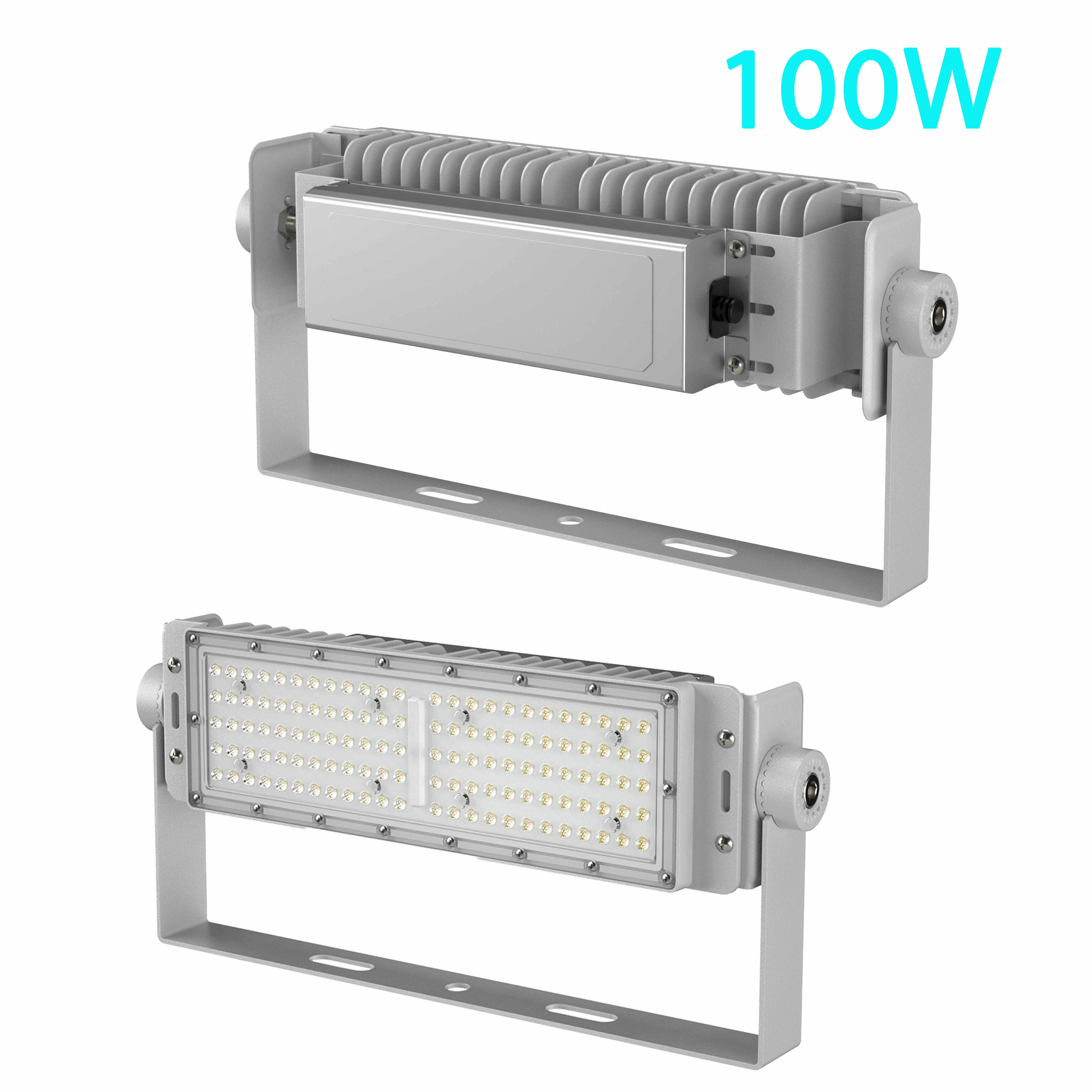

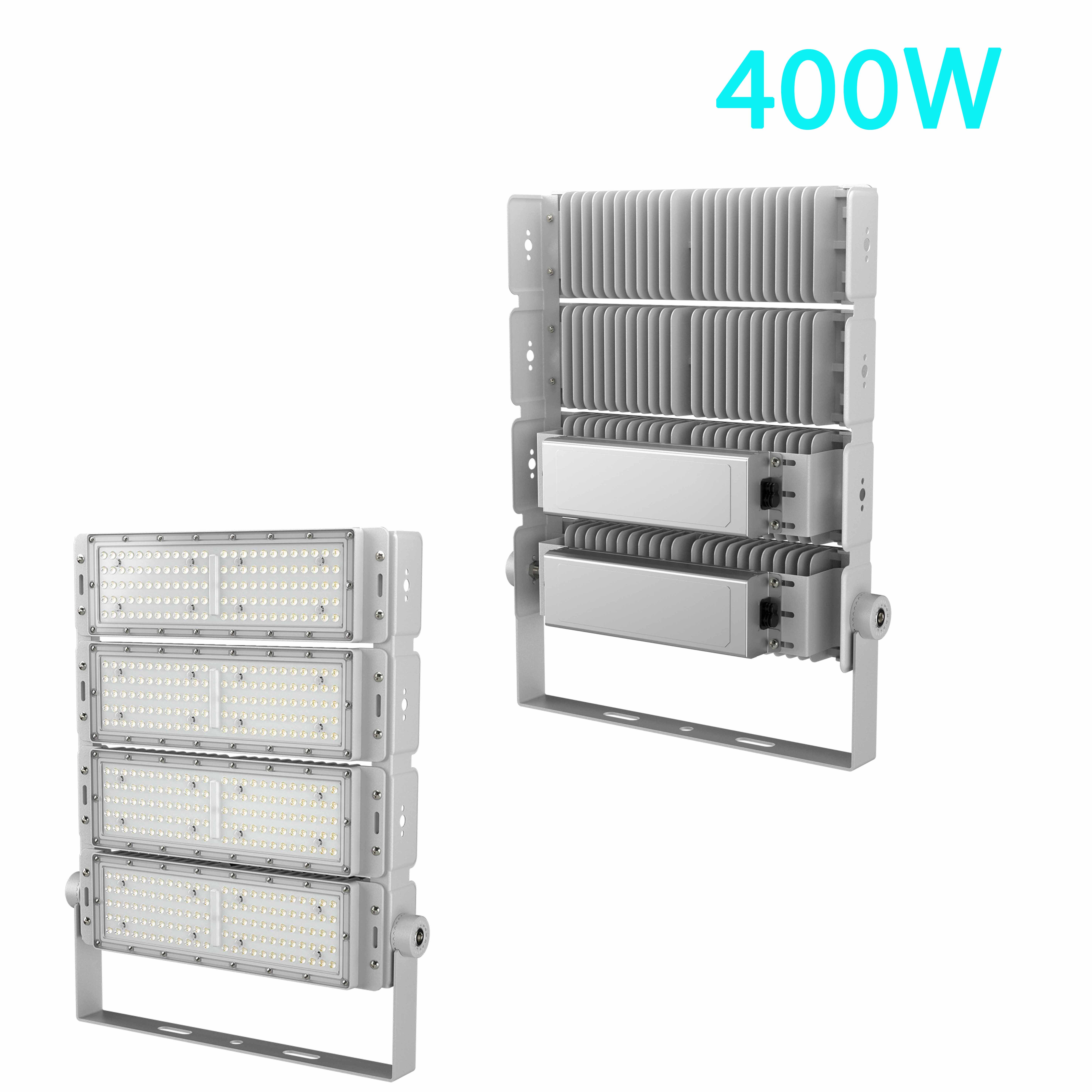

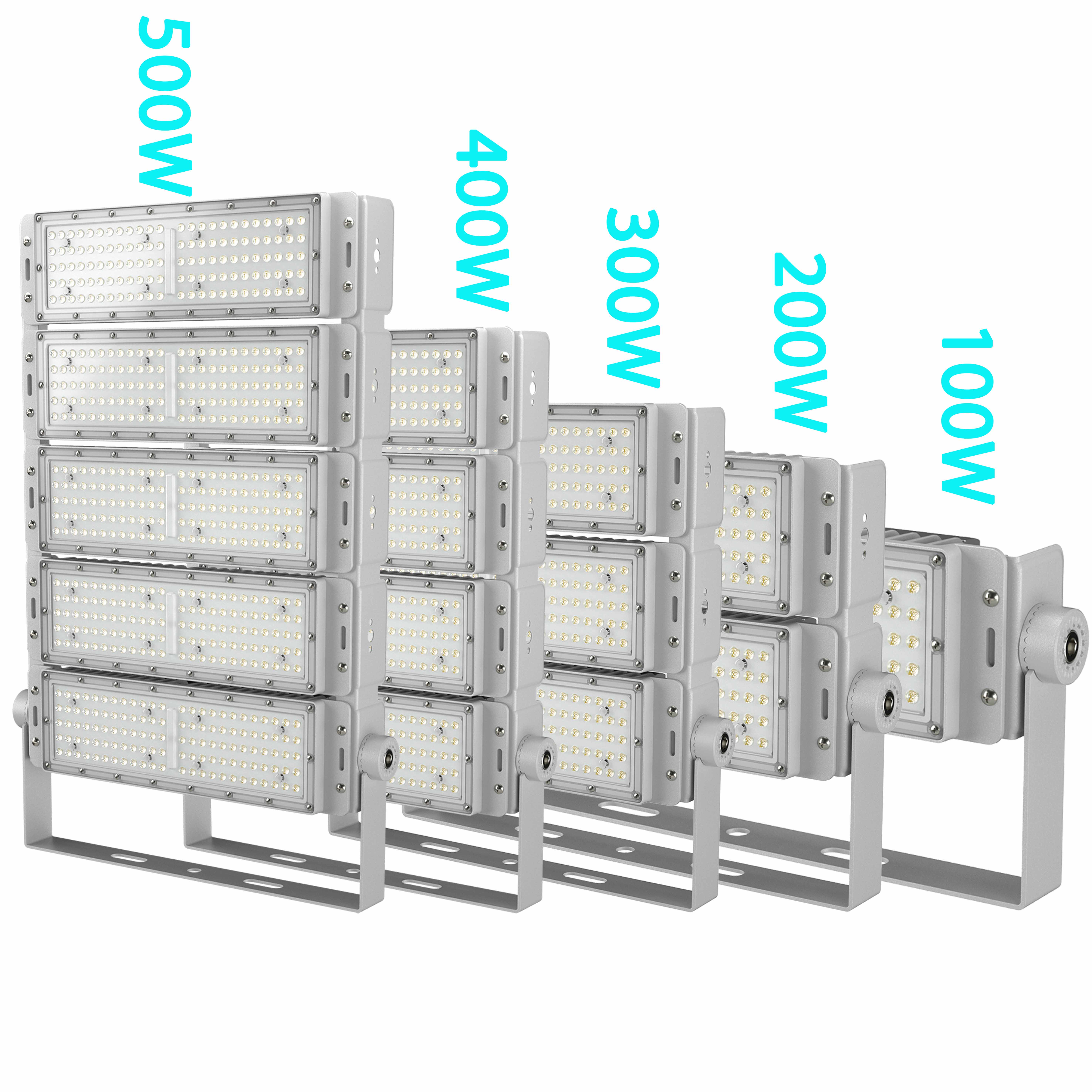

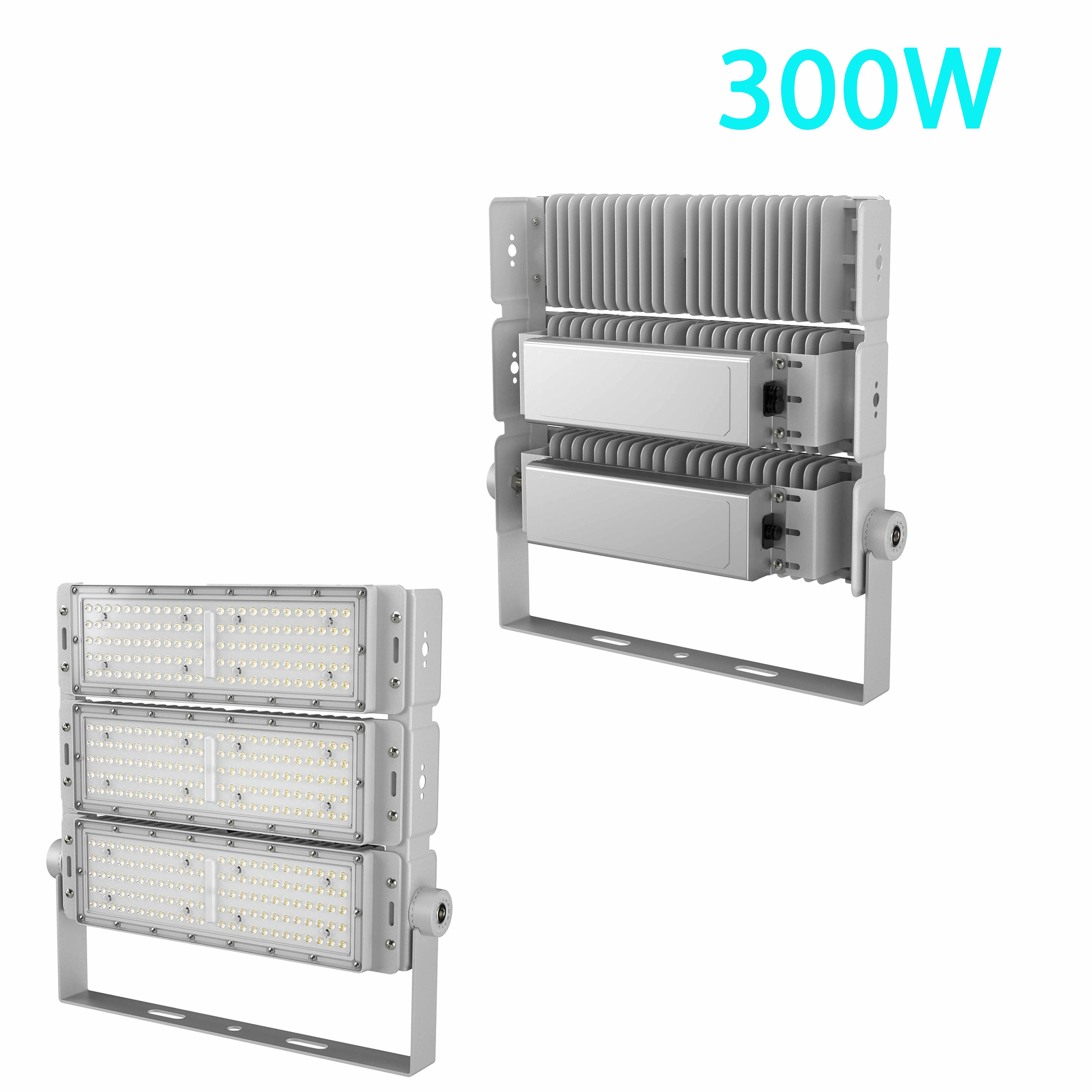

Model Number	LL-FLX-100W-4M	LL-FLX-200W-4M	LL-FLX-300W-4M	LL-FLX-400W-4M	LL-FLX-500W-4M
Wattage	100W	200W	300W	400W	500W
Lumen	13000lm	26000lm	39000lm	52000lm	65000lm

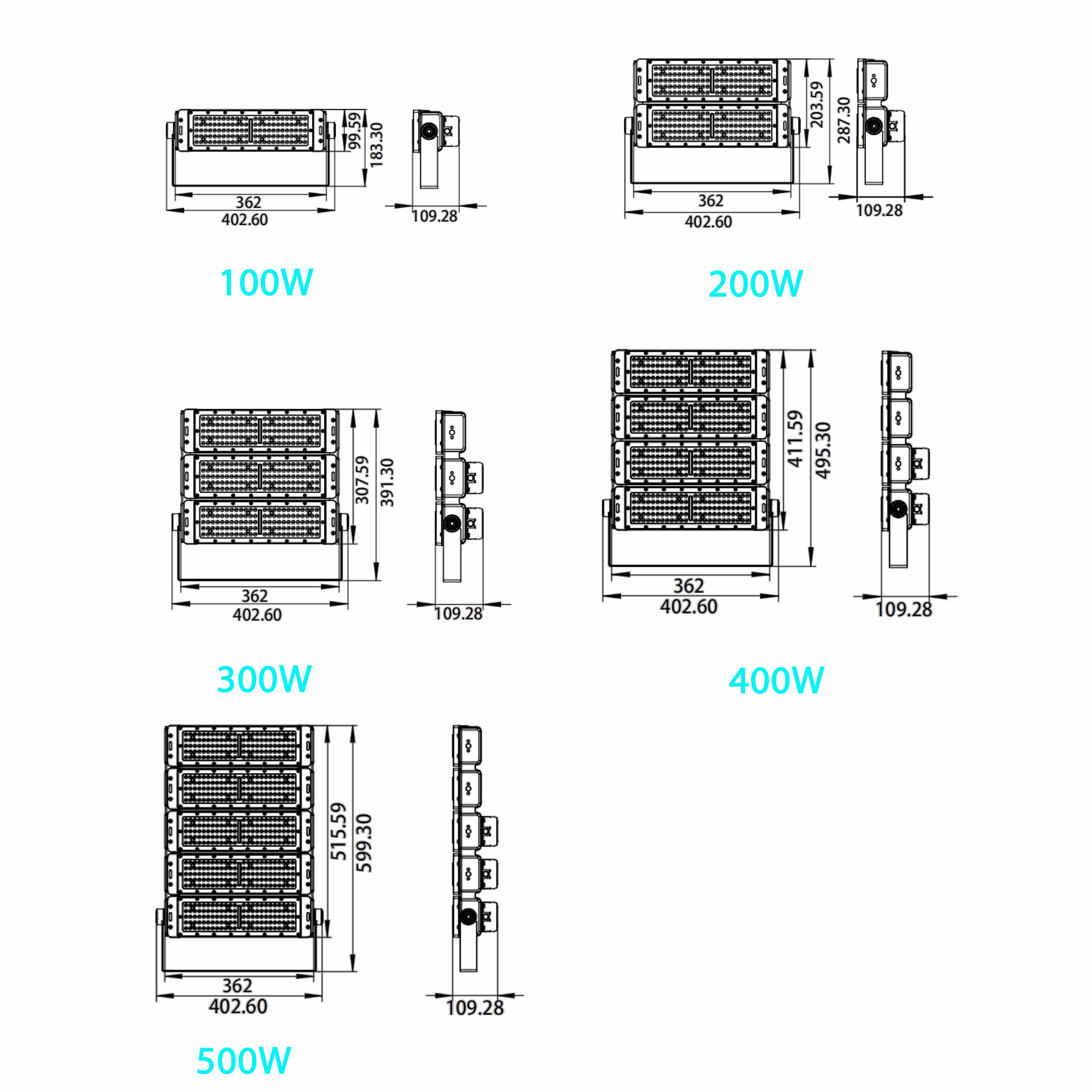

Product size(mm)	183402109	203402109	391402109	495402109	599402109
G.Weight	3.4kg	4.6kg	5.9kg	8.1kg	9.6kg
Voltage	AC85-265V 50/60Hz
Color Temperature	3000K/4000K/5000K/5700K/6500K
LED Source	Philips 2835 LED chip
IP Rating	IP66 IK10
Lamp Body Material	Diecasting aluminum + Anti-UV PC lens

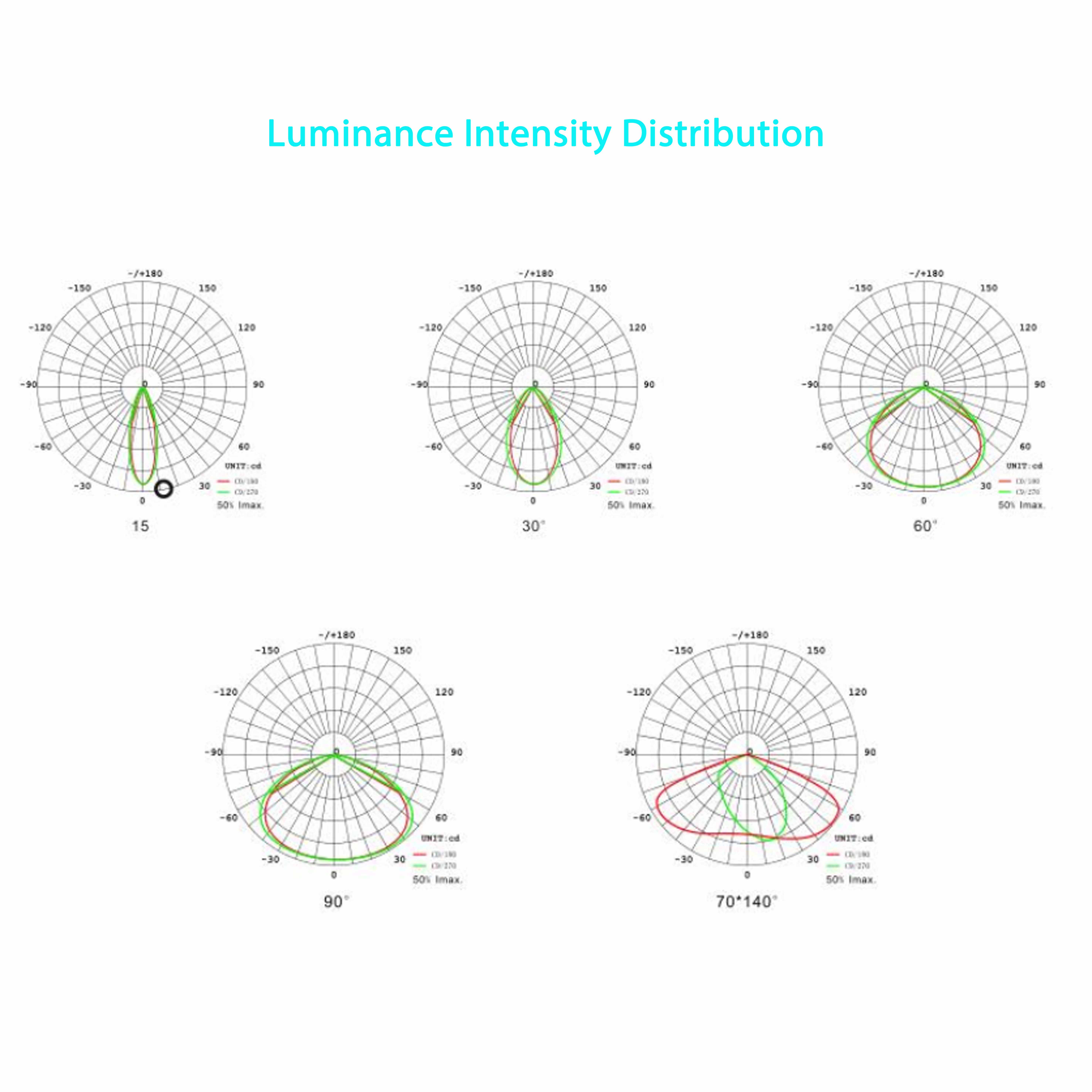

Beam Angle	15/30/60/90/70*140°
Warranty	7-Year

Application

Tunnel, Subway, Underground Lighting
Gymnasium, Sports Stadium Lighting

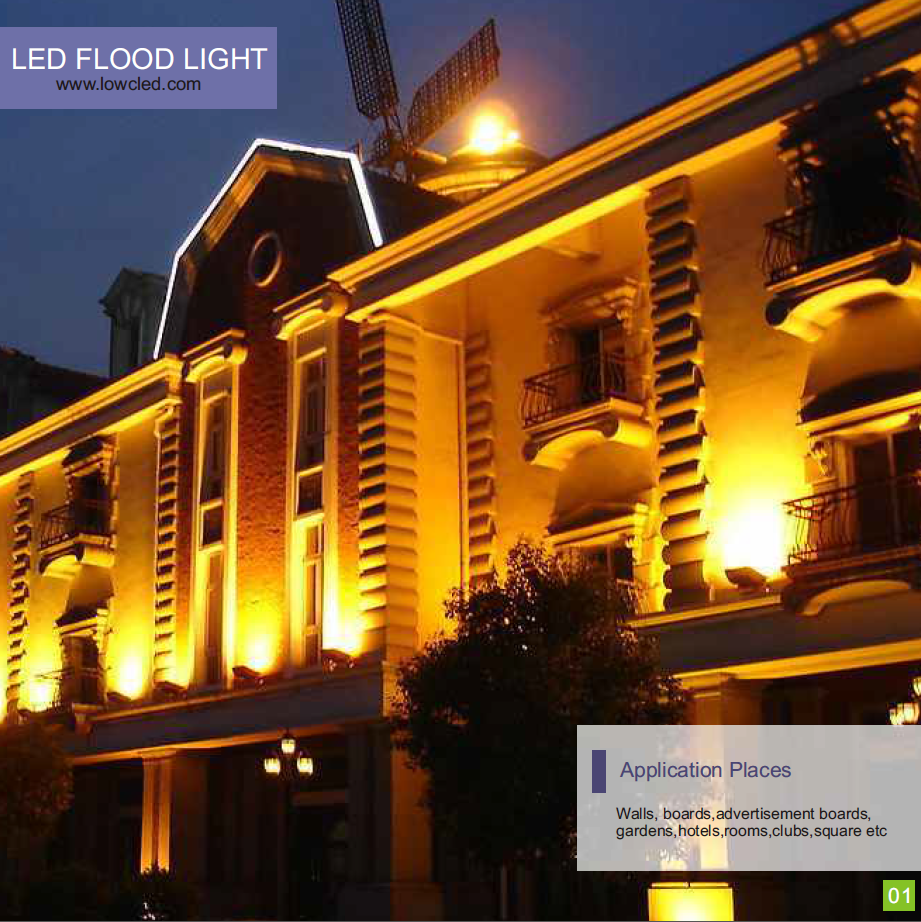

Building, Billboard Lighting
Gas Station, Garage Lighting
Park, Garden Lighting

Workshop, Factory Lighting
Warehouse, Storage Lighting
Yard, Square Lighting
Road, Highway Lighting
Station, Dock Lighting

Packing & Shipping

Certificates

Frequently Asked Questions

What are the benefits of LED lights over traditional MH/HPS lights?

LEDs offer significantly lower energy consumption, converting up to 80% of electricity into light. They feature a longer service life (up to 100,000 hours), higher durability against shocks, instant-on capabilities, and no toxic chemicals like mercury.

What is the most common reason LEDs fail?

Heat is the primary enemy of electronics. Higher temperatures shorten the lifespan. A well-designed fixture with proper heat dissipation and high-quality drivers can withstand high-heat environments effectively.

What is L70?

L70 refers to the amount of time it takes for a light source to degrade to 70% of its initial lumen output.

What are the advantages of dimming LEDs?

Dimming saves energy by reducing power output, extends the life of electronic components as they run cooler, and increases space flexibility for different activities like presentations or focused work.

How many lumens do I need to replace a 400W Metal Halide High Bay?

Typically, a range of 17,000 to 23,000 lumens is required. Generally, a 150W LED fixture can effectively replace a traditional 400W Metal Halide lamp depending on the environment.

How do you ensure color consistency across a project?

We use exact binning for all lights in a single project. By working closely with chip suppliers like Philips and OSRAM, we fine-tune the color output to ensure high consistency, often matching within 25 degrees Kelvin.
