Product Benefits
🚀 High efficiency to save energy cost, up to 180lm/w
🛠️ Pre-wired trunking rail, plug & play, Tool-free for installation, save 80% labor and wiring cost
⏳ Long rated life : L80 @60,000 hrs, L90 @ 50,000 hrs, 5 years warranty

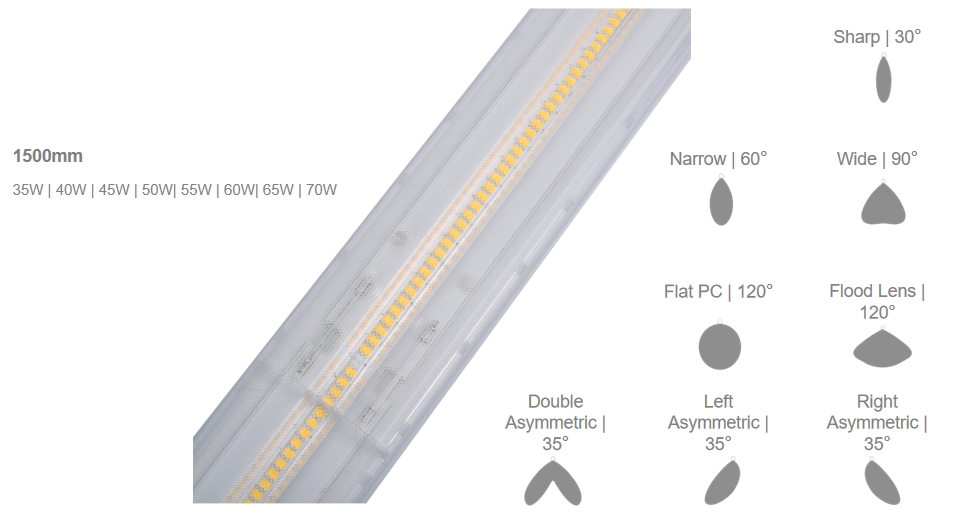

📐 Flexible beam angle: 30°/60°/90°/120°/right or left asymmetric/double-asymmetric

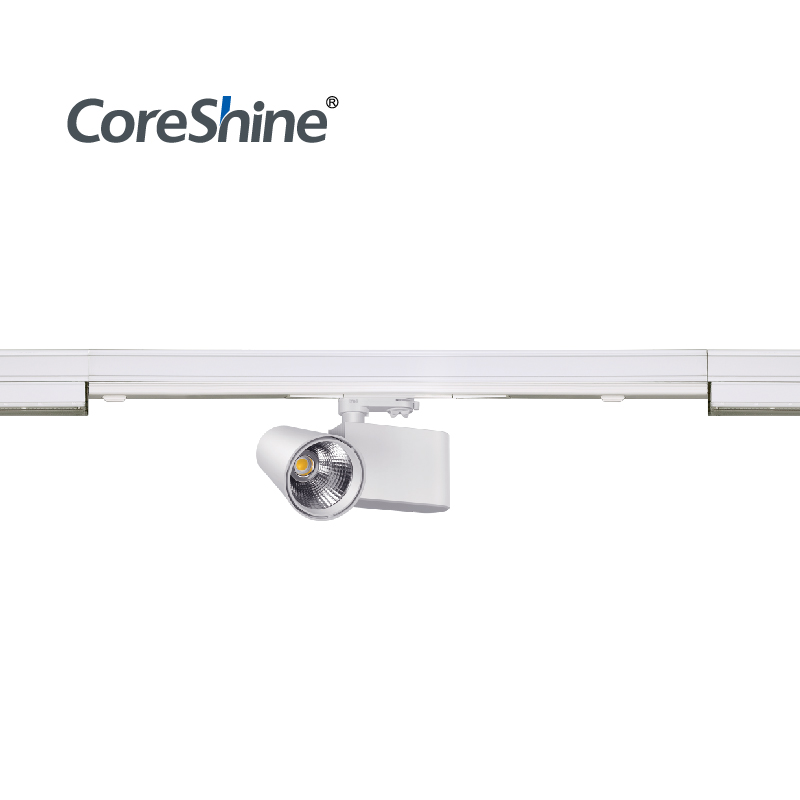

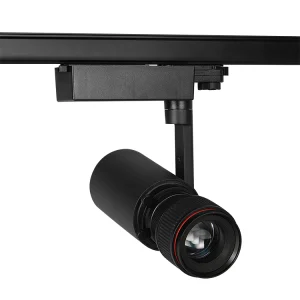

⚙️ Multi-function: DALI/1-10V Dimming, Emergency, Track spotlight module, Sensor module, Exit Sign module
🔧 Easy for maintenance, just push button to replace a single luminaire without affecting other lights
⚡ The maximum current is 16A, One power feed-in can support max. 3500w/row

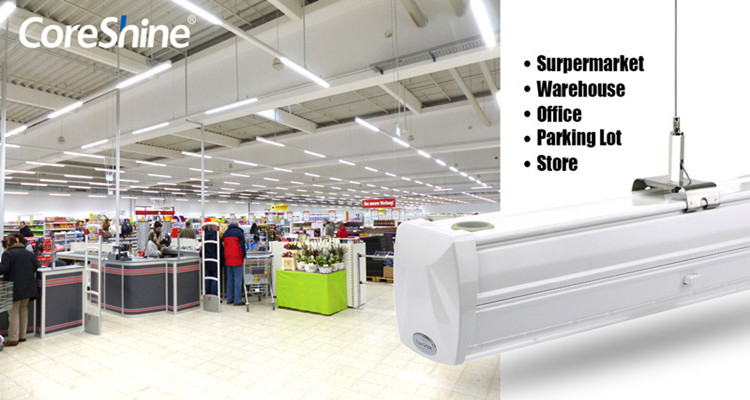

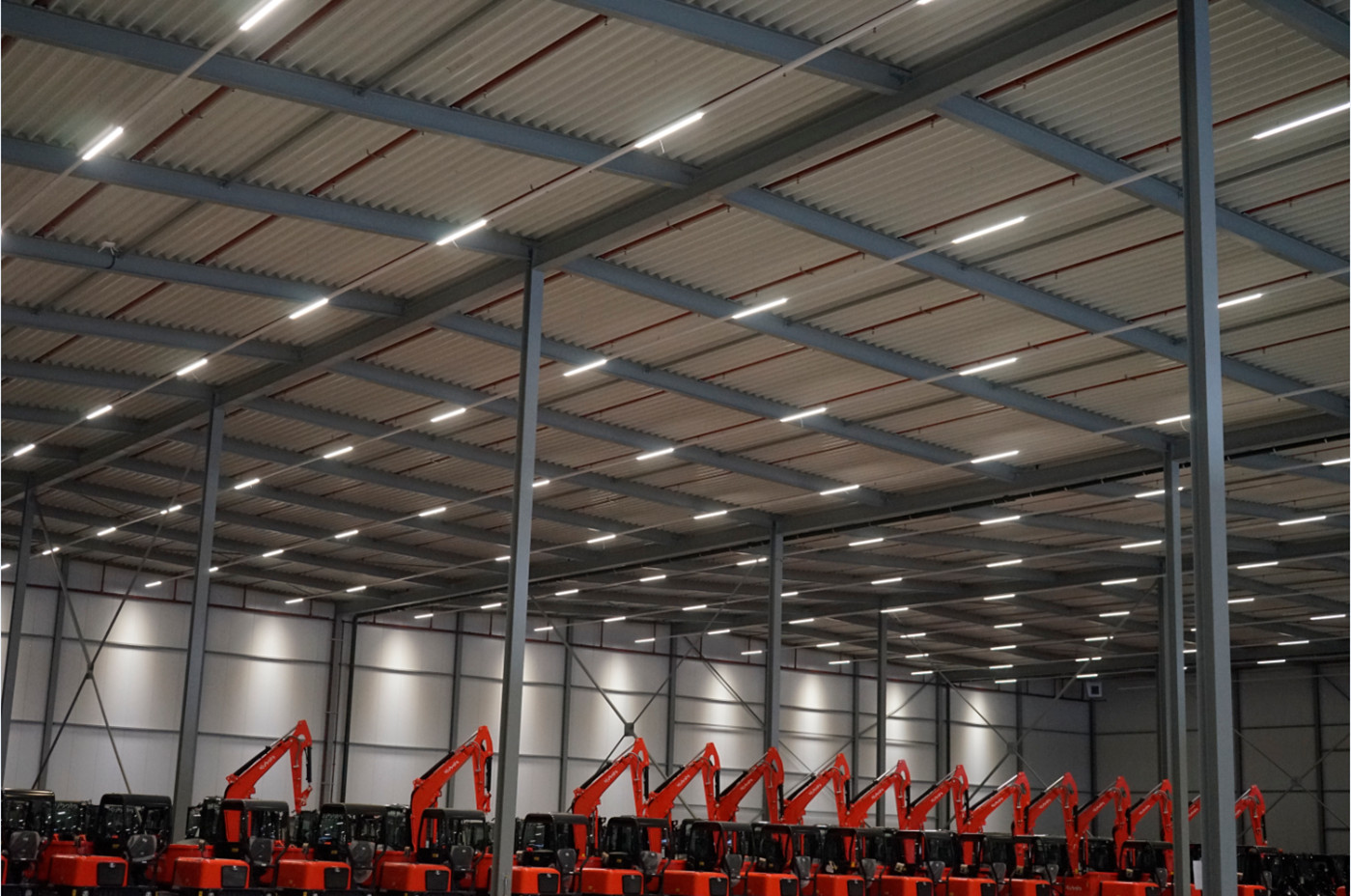

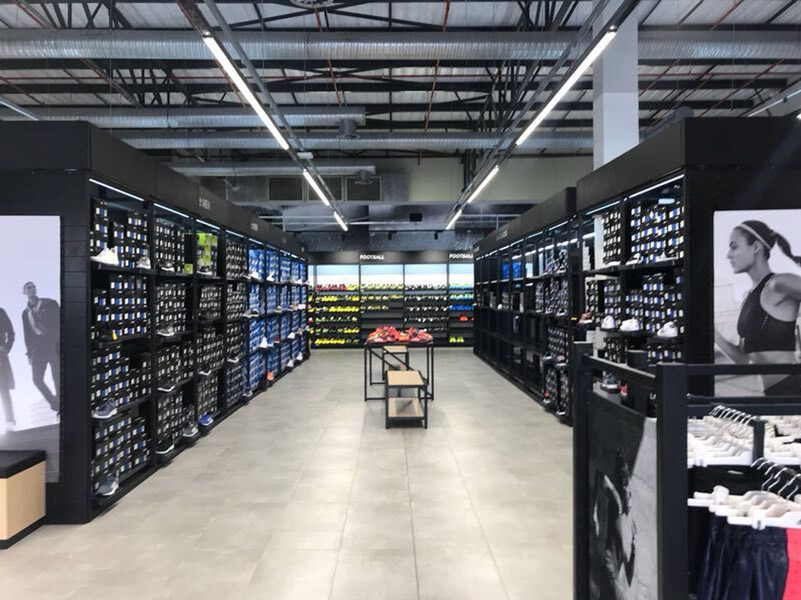

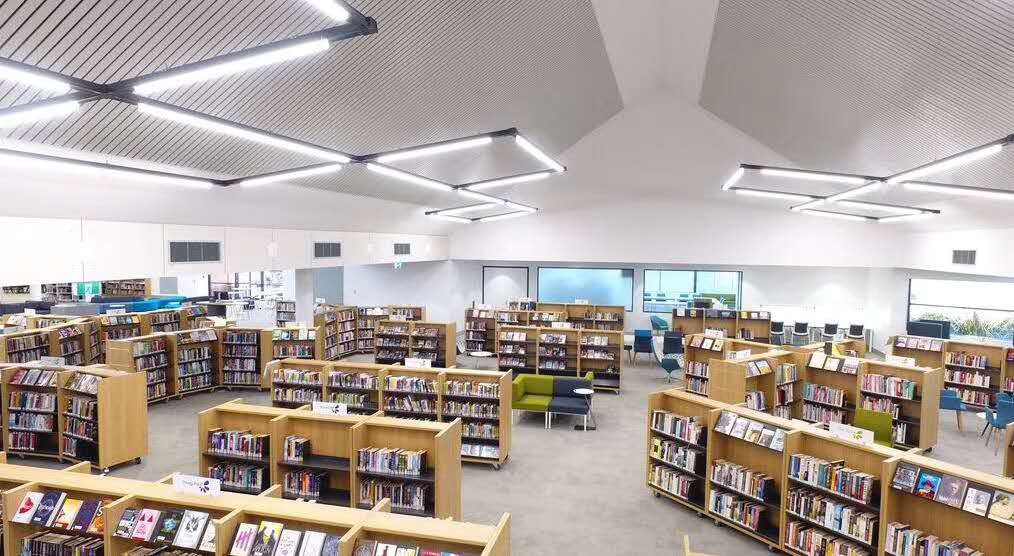

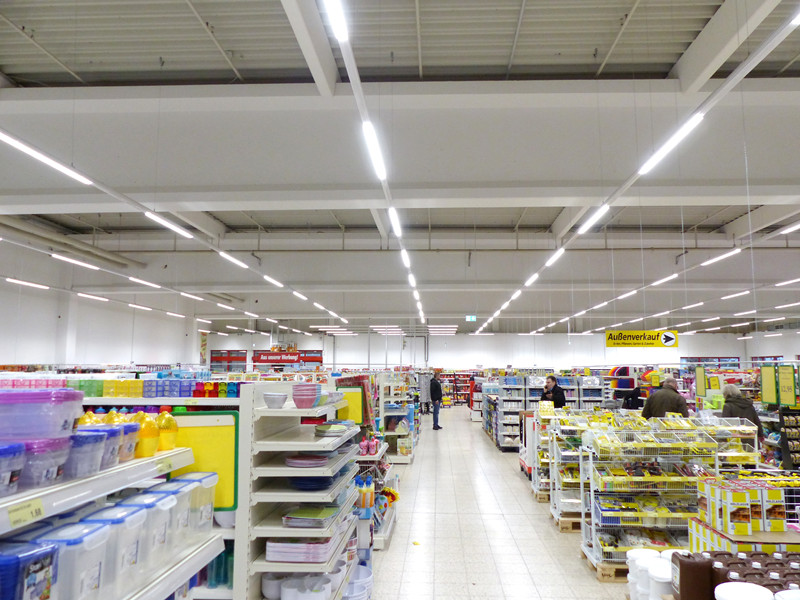

Project Cases

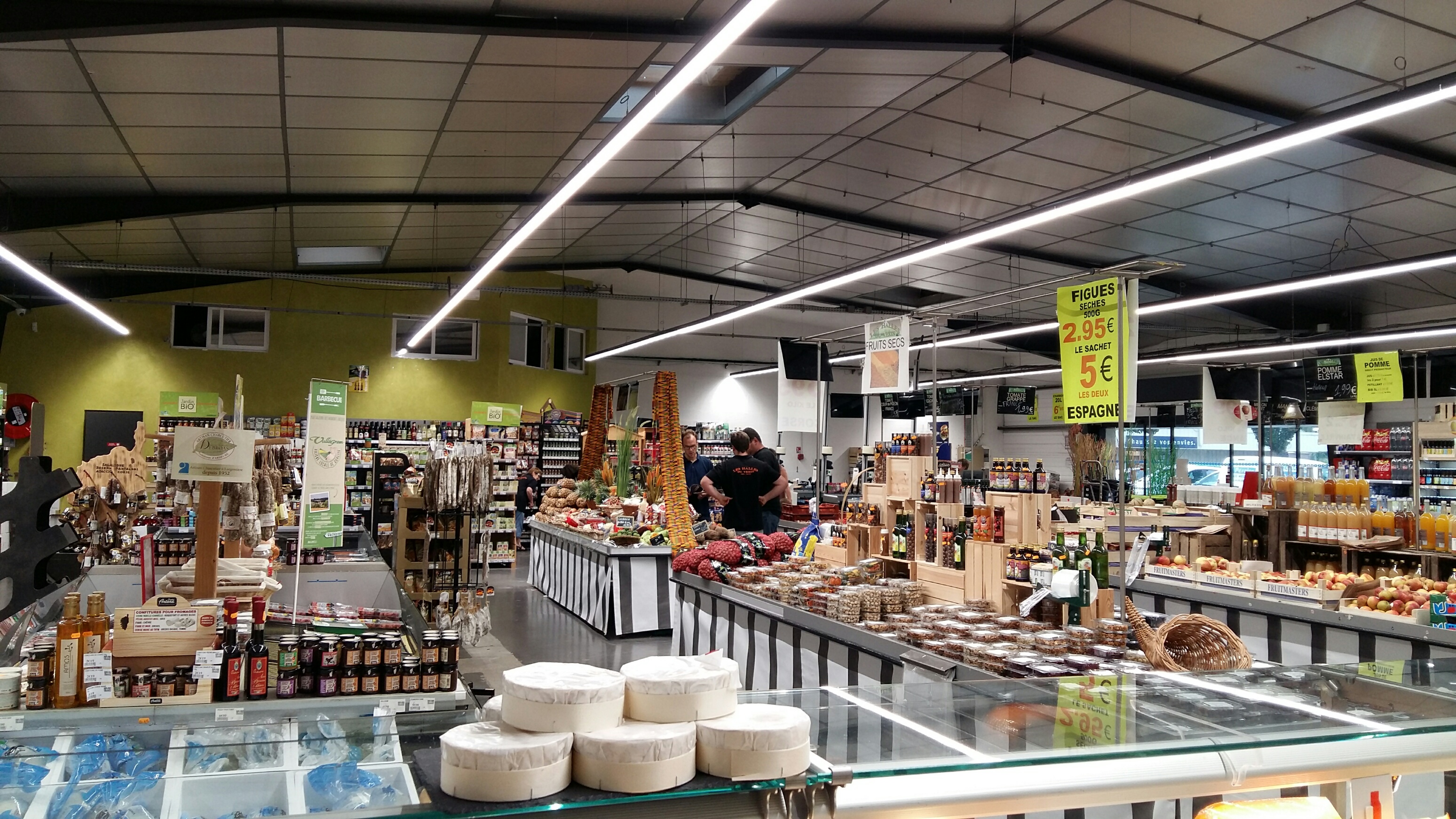

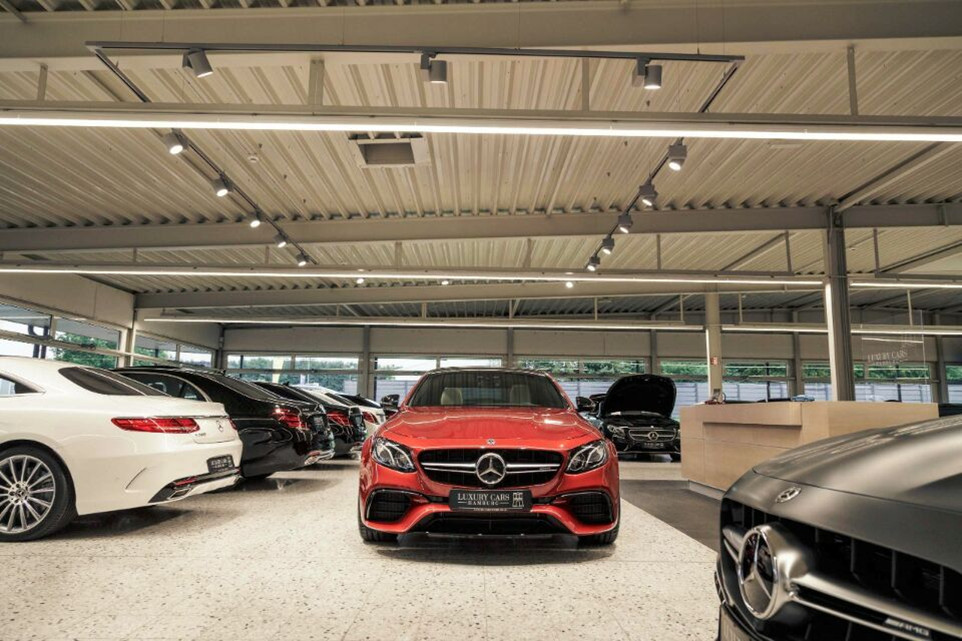

Ideal for Supermarket, Warehouse, Car showroom and more.
Detailed Structure
Trunking rail | Luminaire | Function module | Accessories

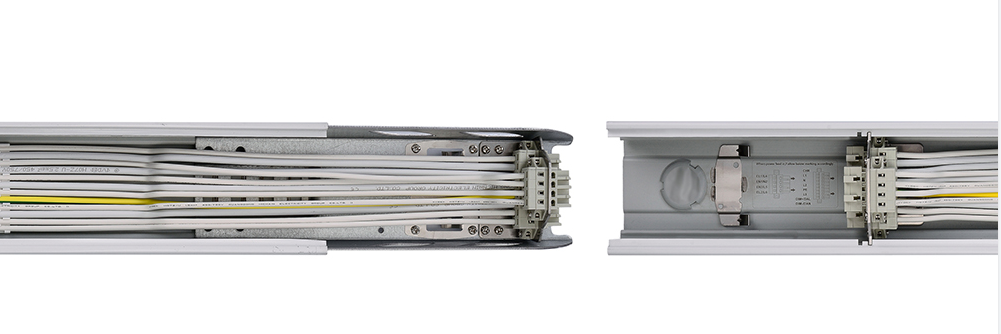

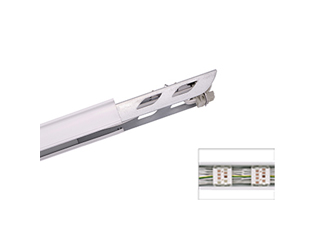

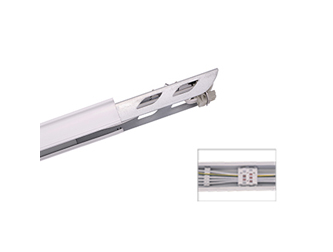

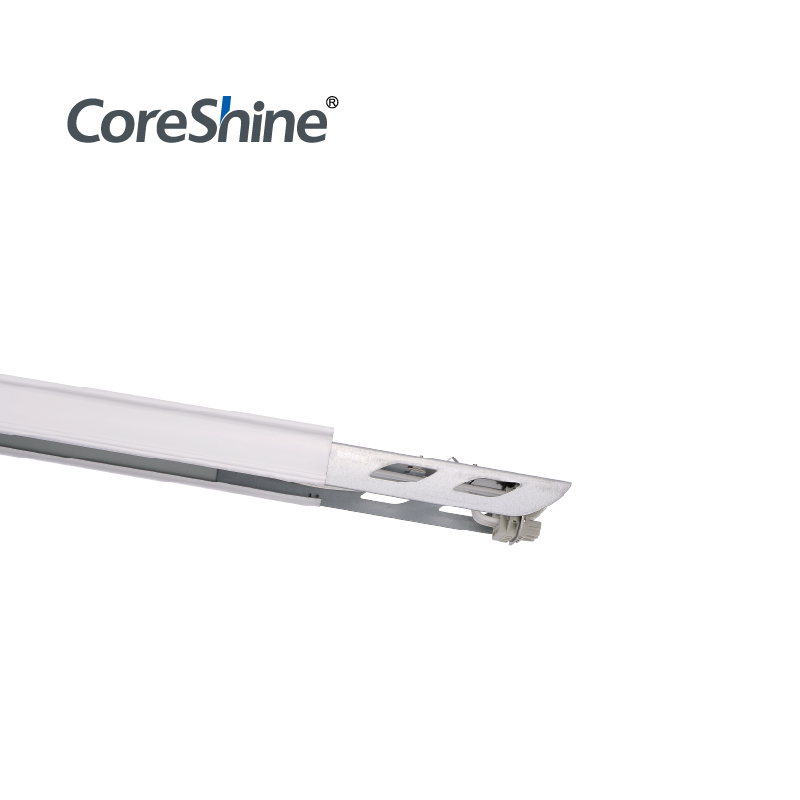

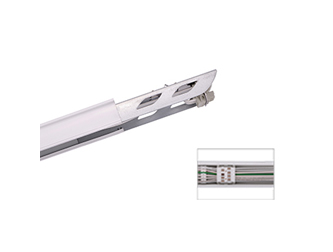

Trunking Rail
5-PIN: L1 L2 L3 N PE
8-PIN: L1 L2 L3 N PE D+ D- CHR
12-PIN: L1 L2 L3 N PE D+ D- CHR EL1 EN1 EL2 EN2

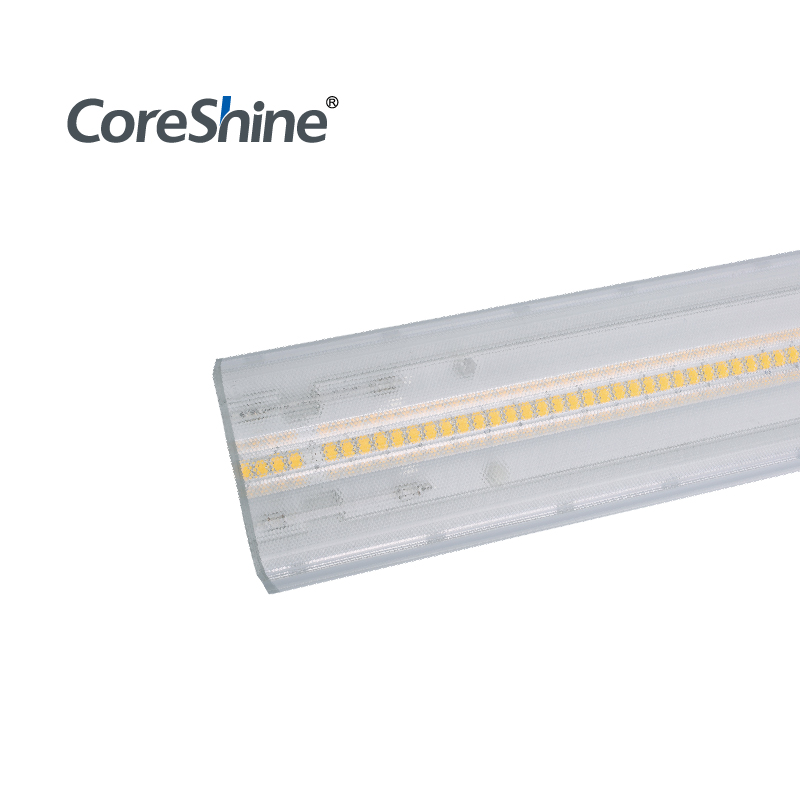

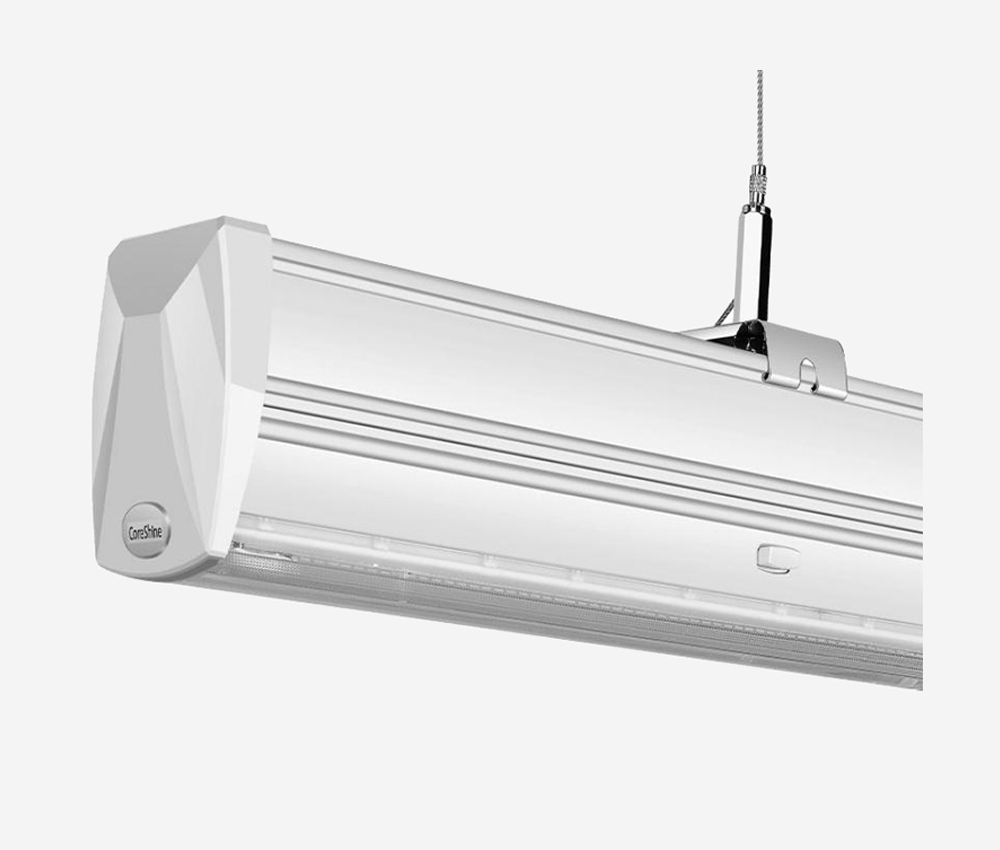

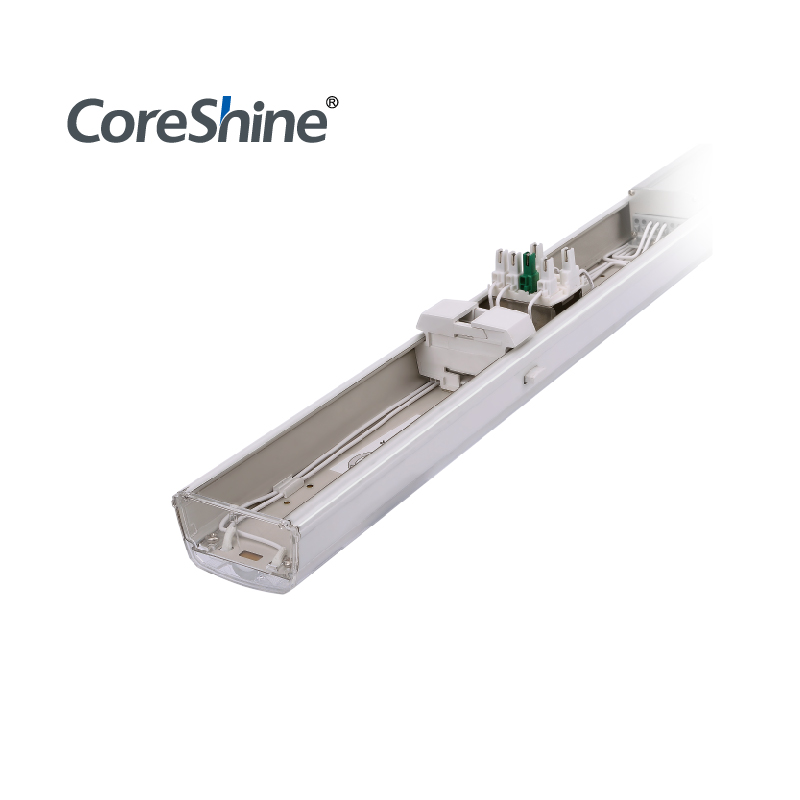

Luminaire & Modules

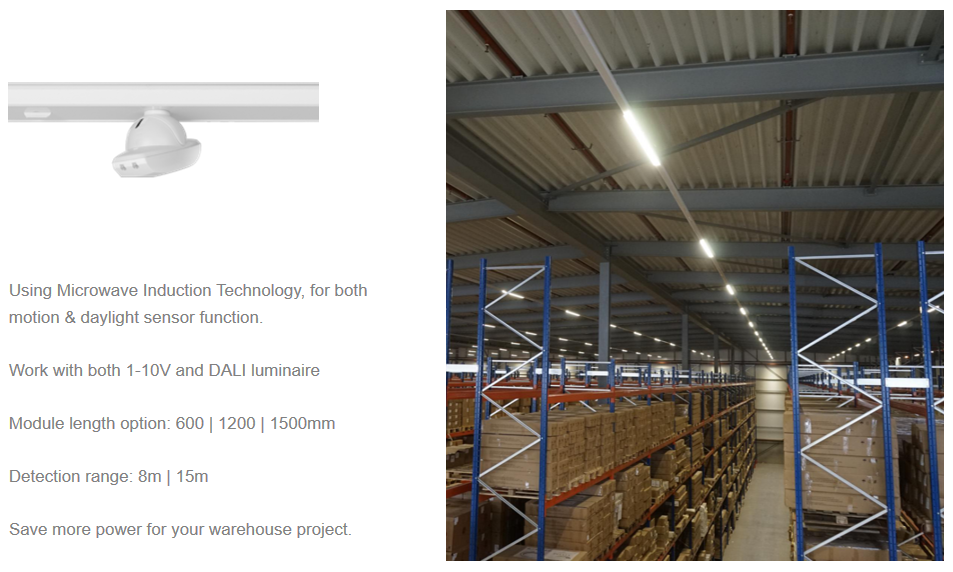

Sensor Module
Technical Specifications
| Parameter | Details |
| Product Name | S-Line LED Linear Trunking System |
| Dimension | 1500*76*70mm |
| Power | 35/40/45/50/55/60/65/70W |
| Voltage | AC 220-240V |
| Efficiency | 180lm/w |
| Lumen | 6300lm - 12600lm |
| CCT | 2700K - 6500K |
| Beam Angle | 30°, 60°, 90°, 120°, LS/RS, DS, FF |
| CRI | 80Ra |

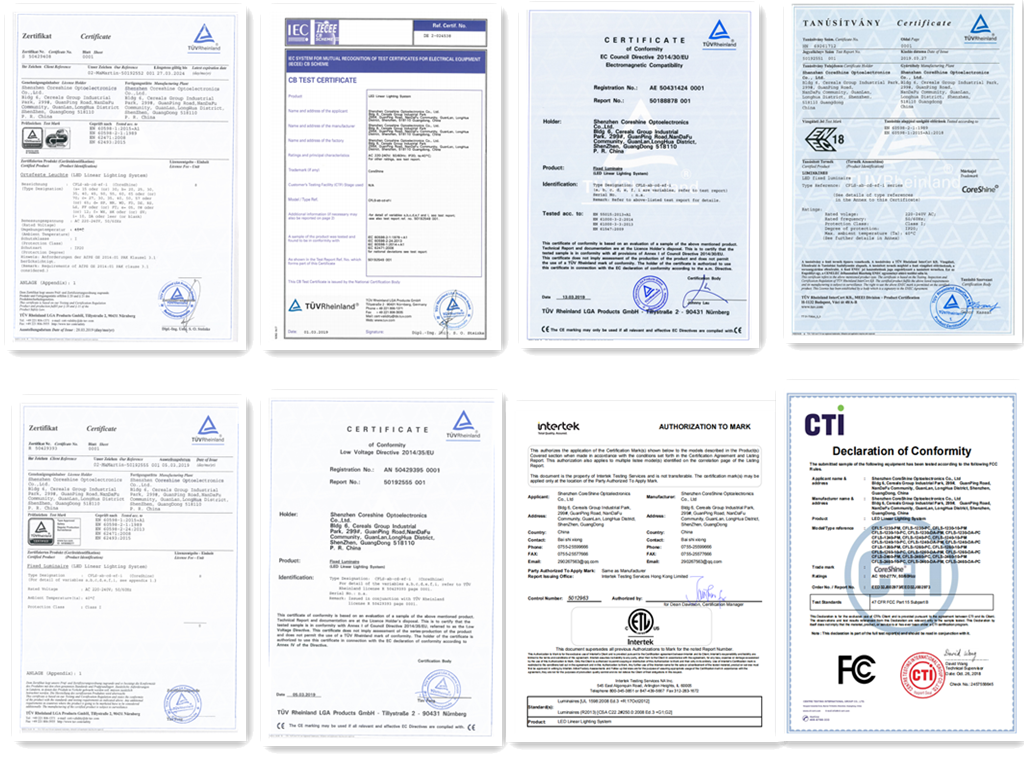

Certification
GS / CB / CE / TUV / C-TICK / ENEC / RoHS

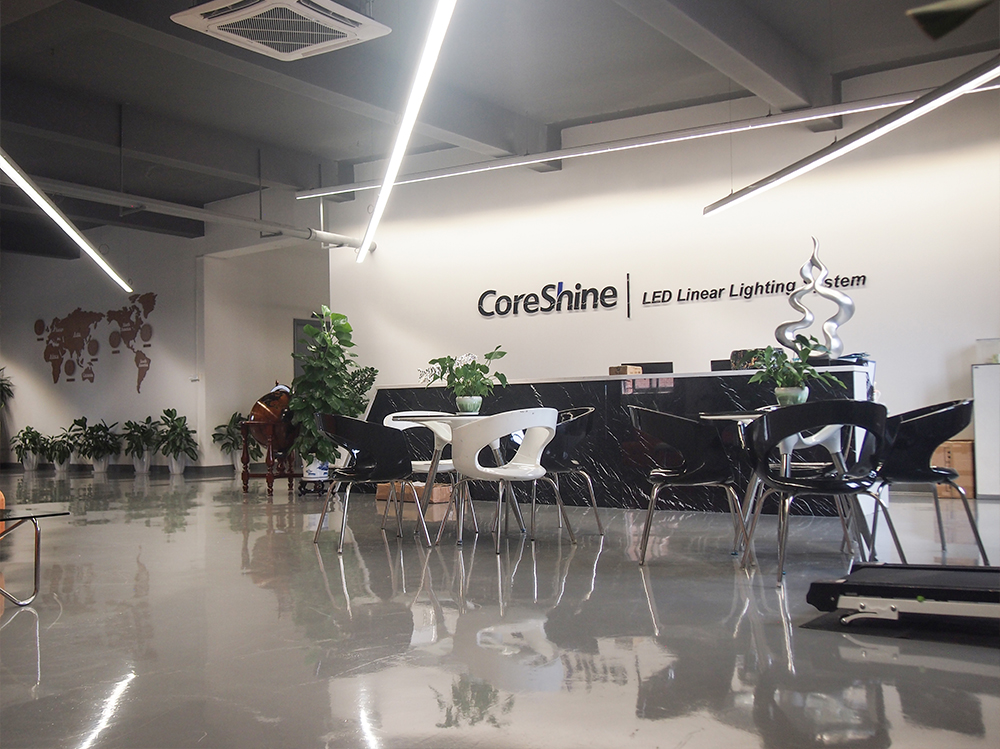

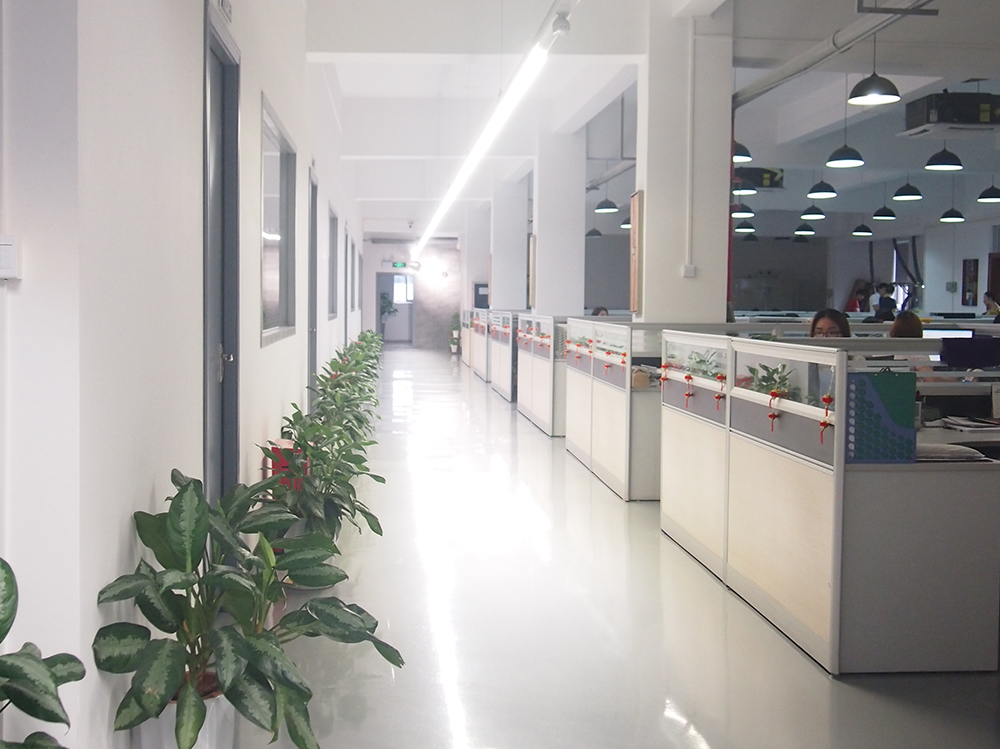

Manufacturing Excellence
As a leading lighting manufacturer, founded in 2005, we have focused exclusively on Linear Lighting Solutions since 2014. With years of development, we provide high-quality products with competitive costs using advanced production equipment. Our factory covers 30,000m², where over 95% of components are made in-house, ensuring superior quality control, fast delivery, and competitive pricing.

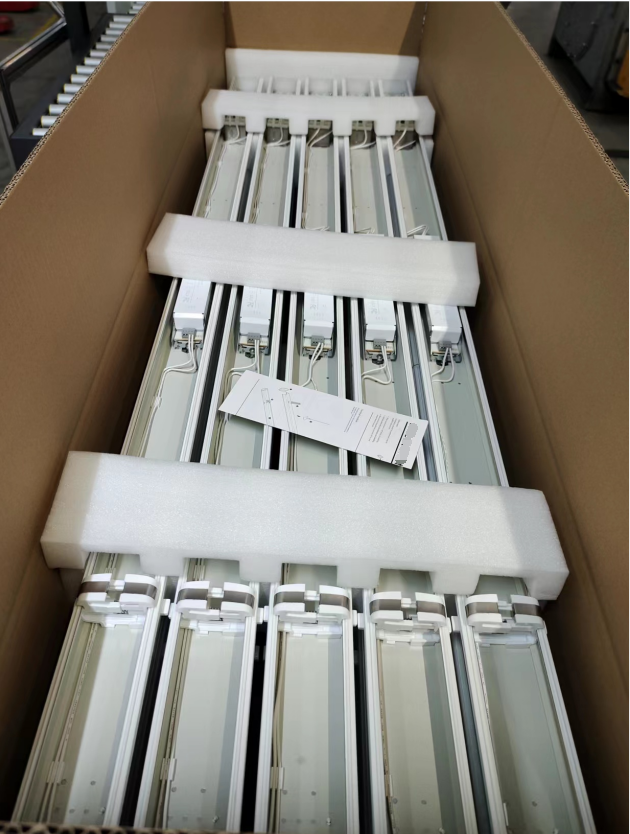

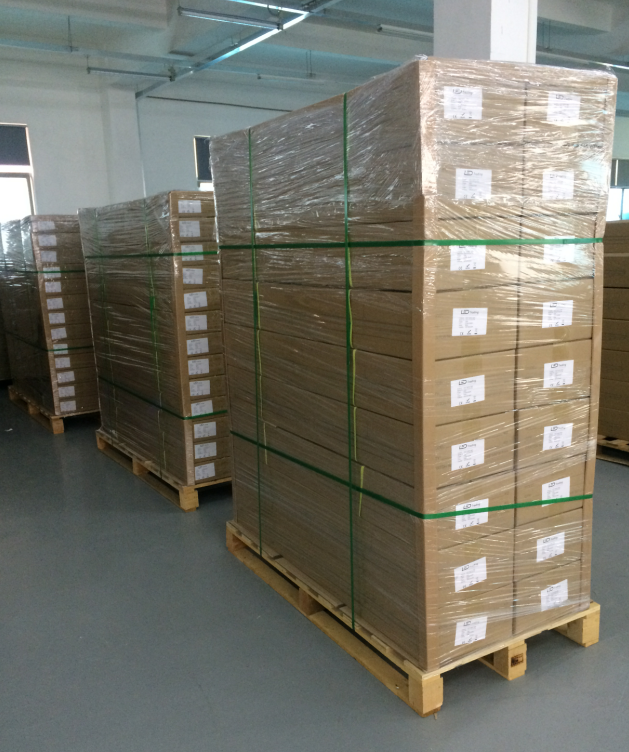

Packing & Shipping

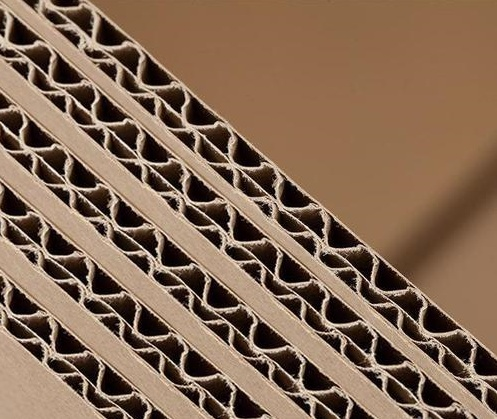

Outer Box
Materials: 5 layers corrugated U636K carton box. Advantage: Stronger and good cushioning, providing protection from transit damage.

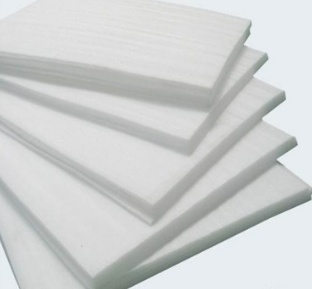

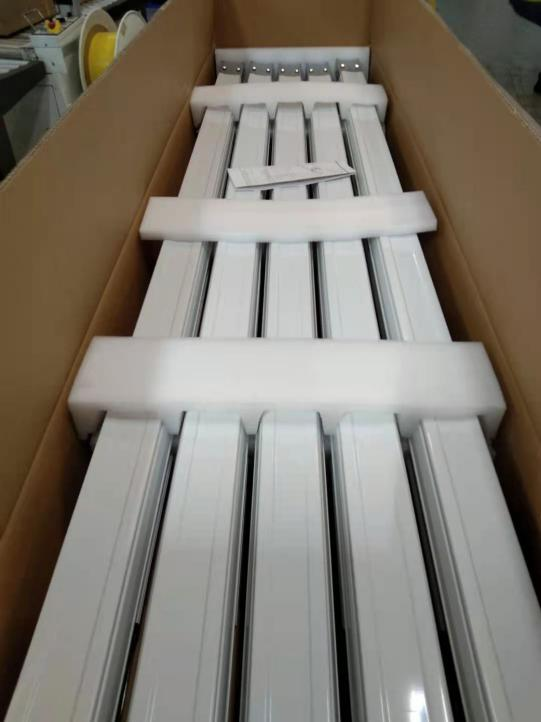

EPE Packing Cotton
Materials: EPE with density > 18KG. Advantage: Environmental protection, waterproof, shockproof, heat preservation, and strong toughness.
Frequently Asked Questions
Q1. Can I have a sample order for LED lights?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time for production?
Samples need 5-10 days, while mass production takes 3-4 weeks for orders over 1000pcs.
Q3. Do you have any MOQ limits?
We offer a low MOQ, with 1pc available for sample checking.
Q4. How are the goods shipped and how long does it take?
We typically ship via DHL, UPS, FedEx, or TNT, taking 5-7 days. Airline and sea shipping are also available options.
Q5. What is the warranty for these products?
We offer a comprehensive 5-year warranty on our linear lighting products.
Q6. How do you handle faulty products?
Our products are produced under a strict quality control system with a defective rate under 0.3%. During the guarantee period, we will repair or replace defective items depending on the situation.
