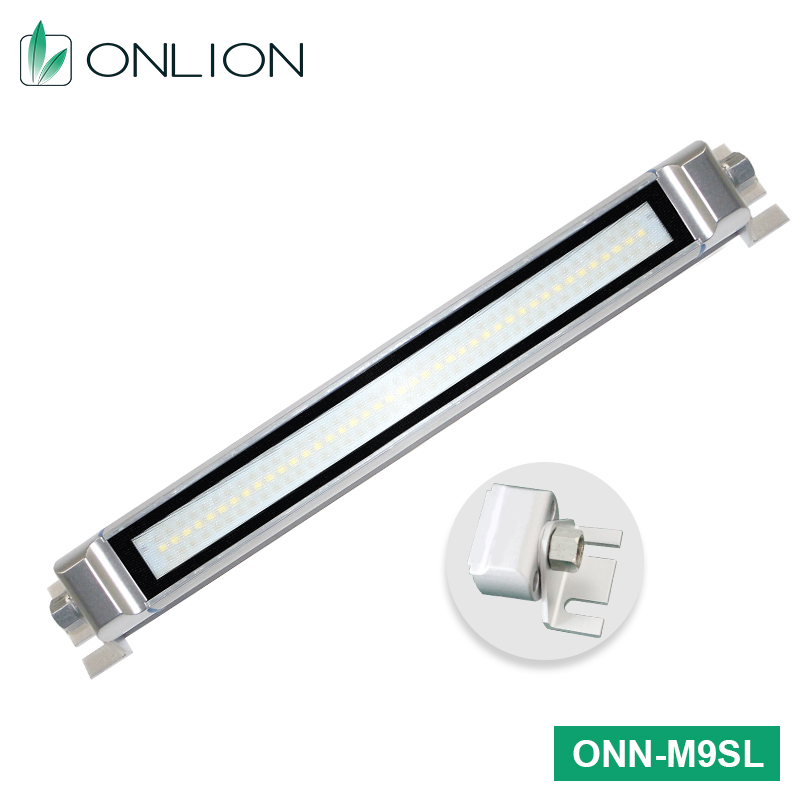

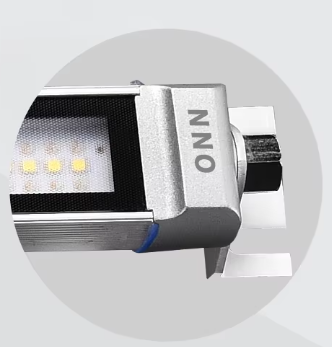

ONN-M9SL IP67 CNC Machine Work Light 2800K/4500K/6500K LED Bar Light Aluminium Alloy LED Machine Tool Work Light

Product Description

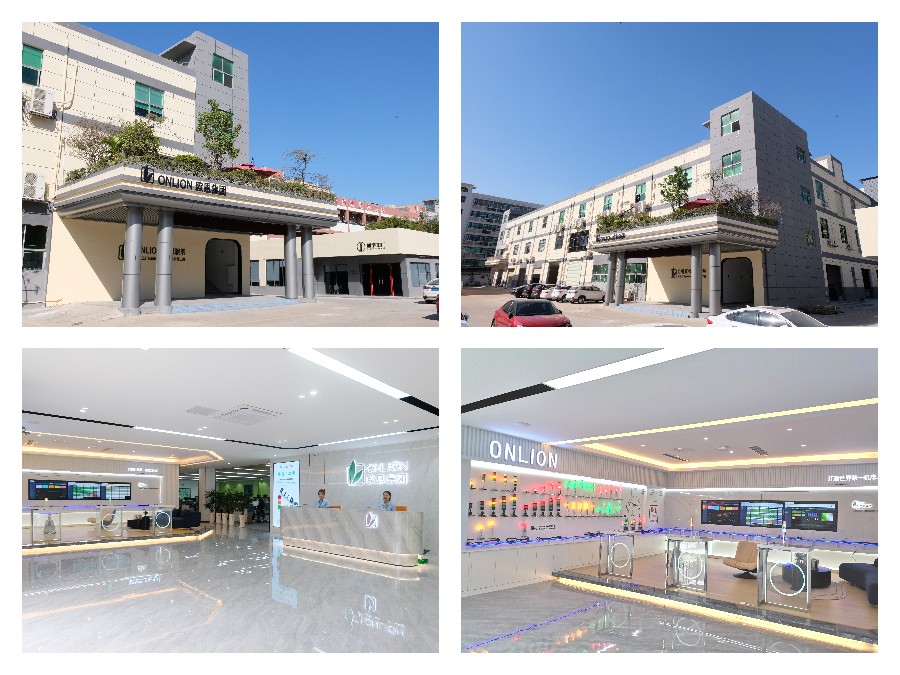

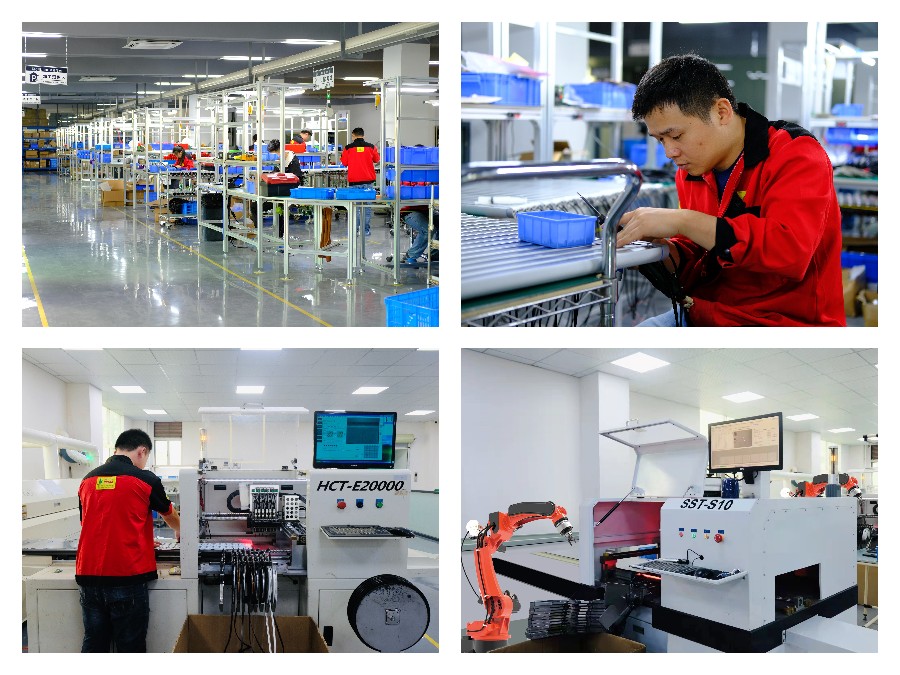

Click below to view our professional factory environment.

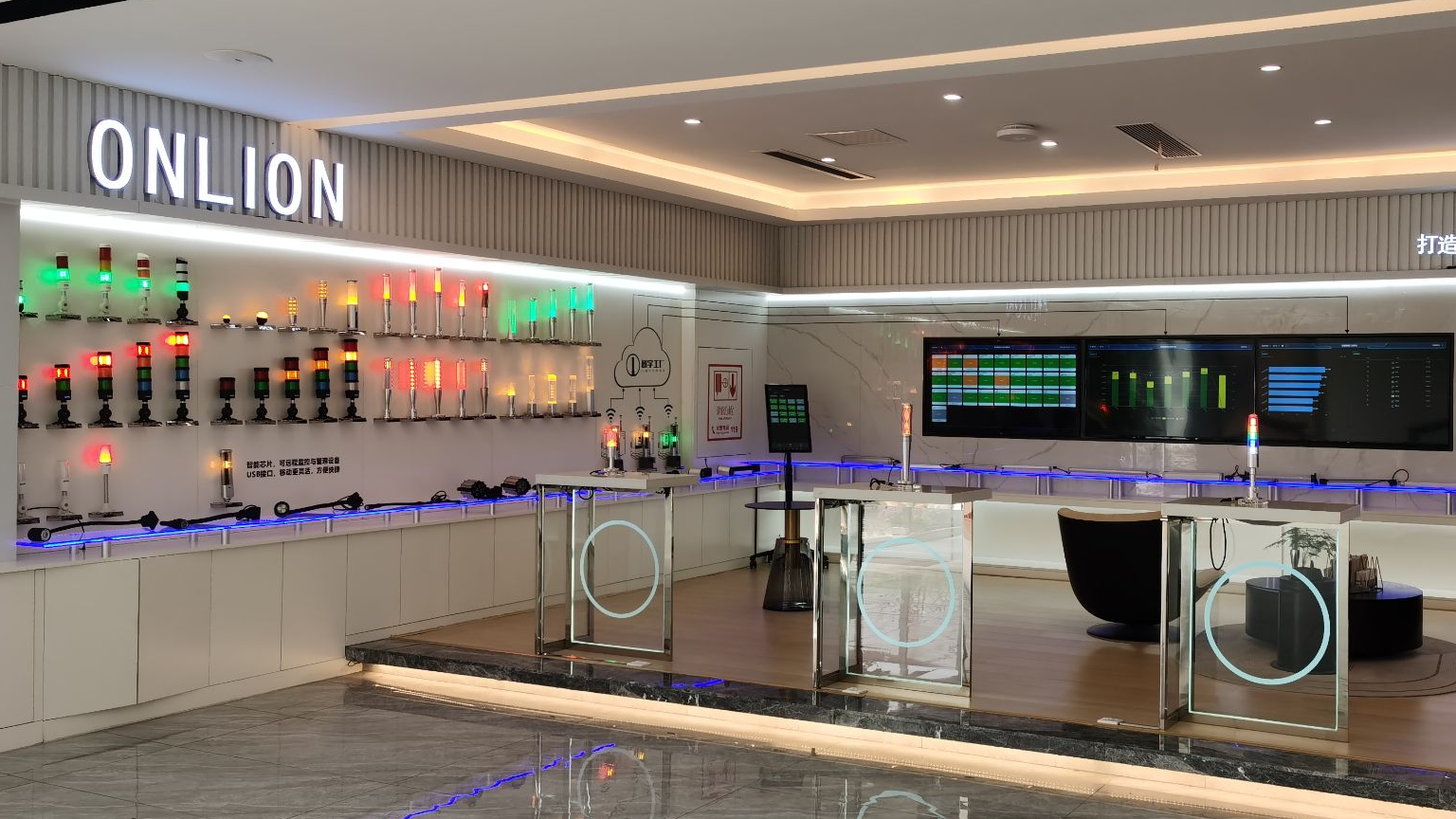

Factory VR
ONN-M9SL IP67 CNC Machine Work Light 2800K/4500K/6500K LED Bar Light

High-performance Aluminium Alloy LED Machine Tool Work Light designed for industrial durability and precision lighting.

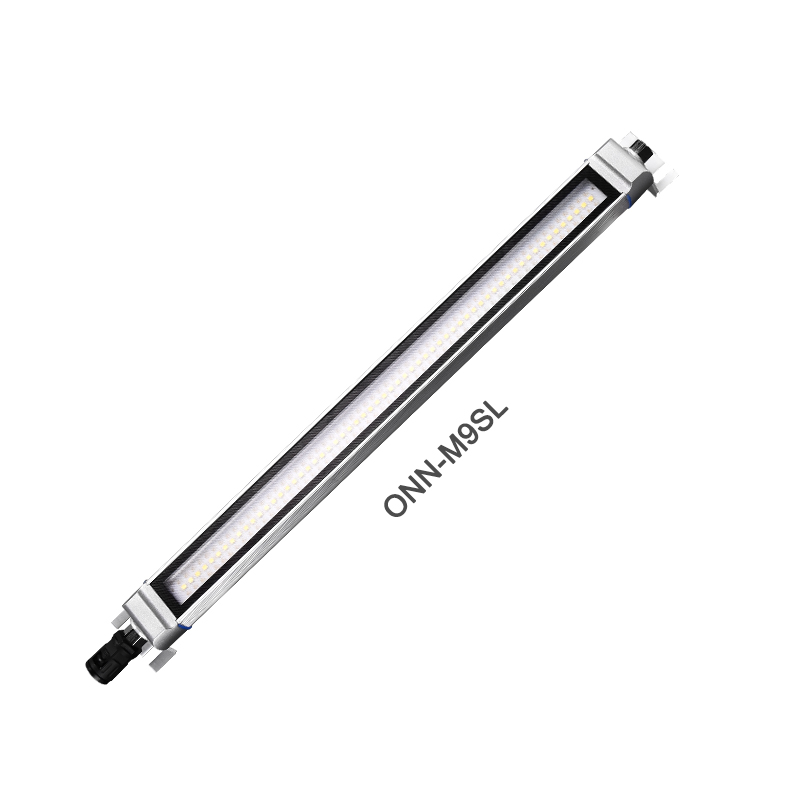

Product Main Image
Product Description

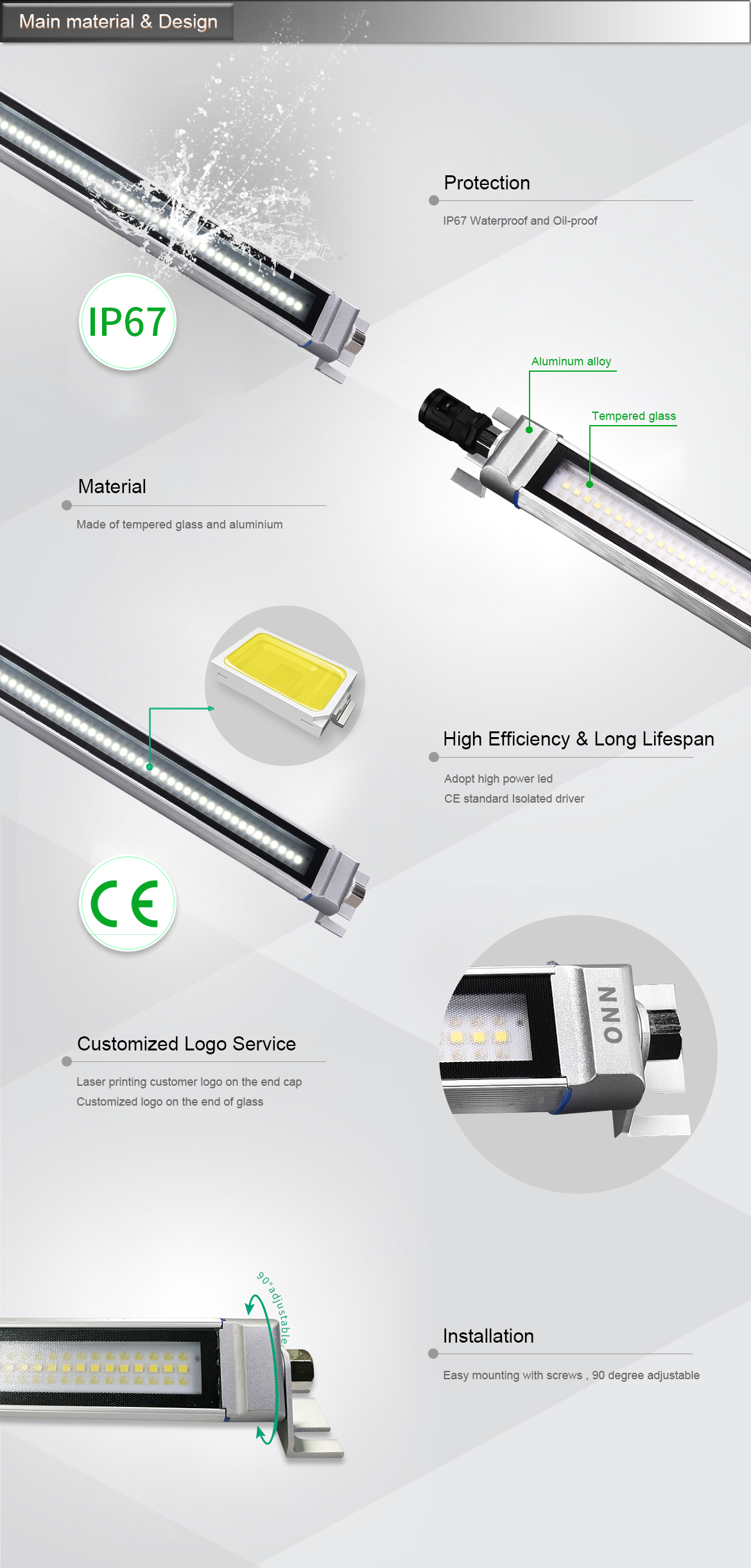

Description Image
Features
  • Designed specifically for harsh industrial environments.
  • Constructed with an anodized aluminum lamp body and tempered glass.
  • IP67 rating: fully resistant to high-pressure washing, coolants, and detergents.

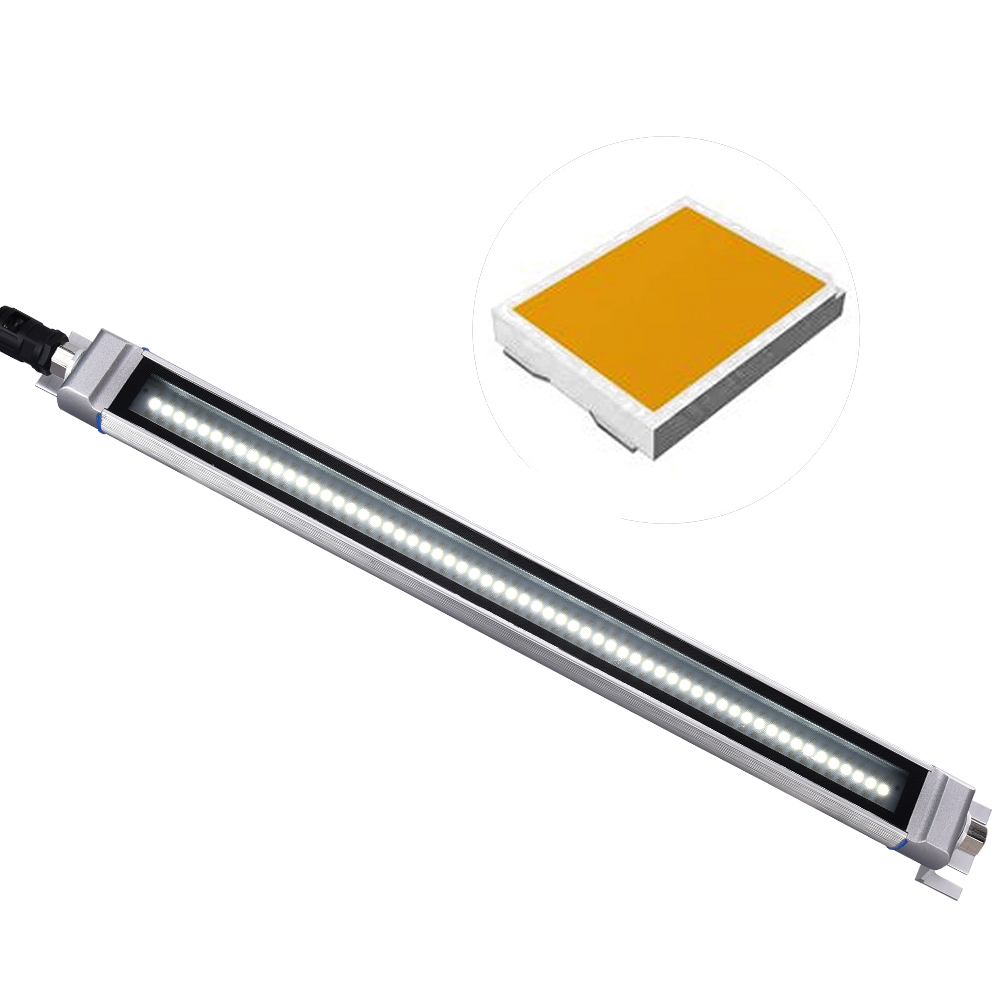

  • Equipped with high-brightness SMD2835 LED chips, reaching 120lm/w.
  • Frosted cover option available to effectively decrease glare.

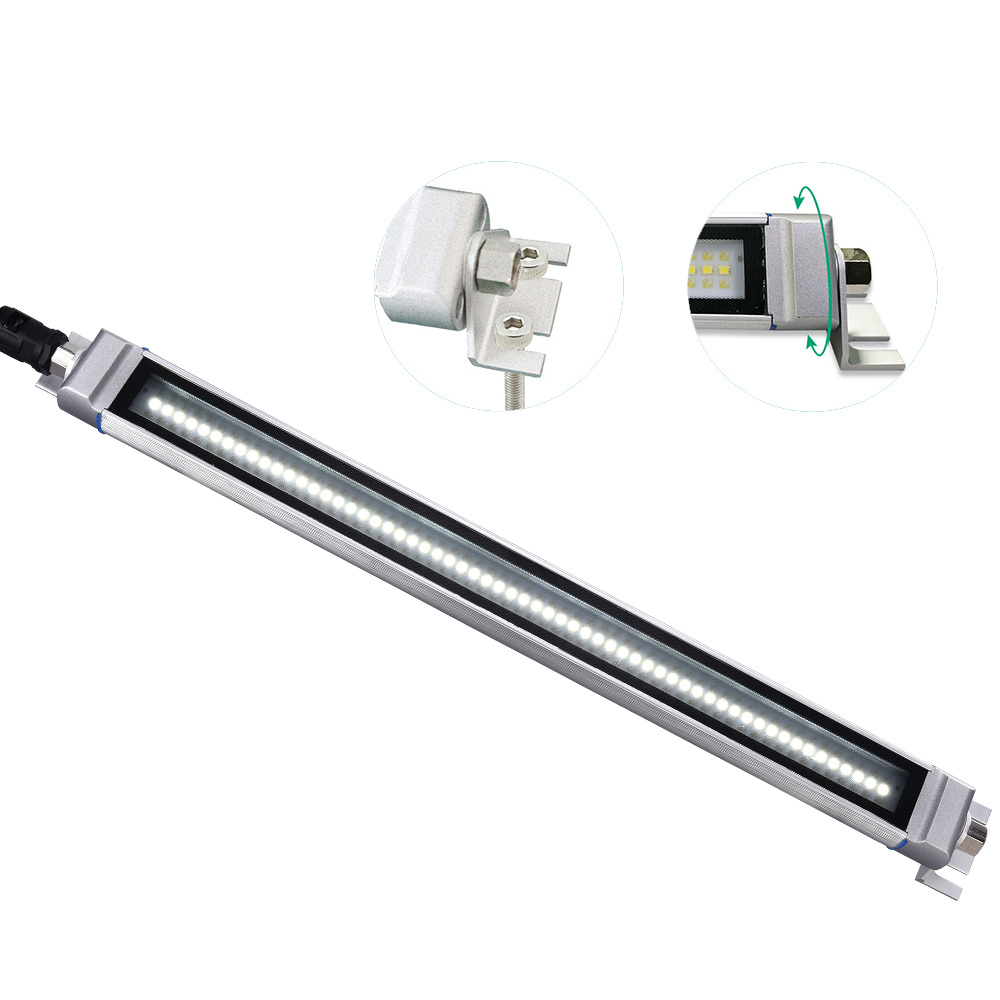

  • User-friendly installation with easy-to-adjust lighting direction.
  • Dual input voltage options: AC90-240V (50/60Hz) or AC/DC24V.
Specifications
Power 7W/12W/16W/20W Color Temperature 2800-3200K, 4000-4500K, 6000-6500K
Input Voltage AC100-265V(50/60Hz), AC/DC24V Material Aluminum housing, Tempered glass cover, AL/15%GF Lamp clip
Lumen Efficiency 770lm - 2200lm (80lm/w) Lifetime 50,000 hours
CRI >80 Working Temp/Humidity -20~45℃ / 10%-90%
IP Rating IP67 Beam Angle 115 degree
Ordering Code Guide
ONN M9SL- B 1 - 600s-12W
1. Model M9S Series
2. Input Voltage B: AC/DC24V | C: AC90-240V
3. CCT (Color) 1: 6000-6500K | 2: 4000-4500K | 3: 2800-3200K
4. Length (Power) 300mm(7W), 400mm(12W), 600mm(16W), 800mm(200W)
Technical Drawing

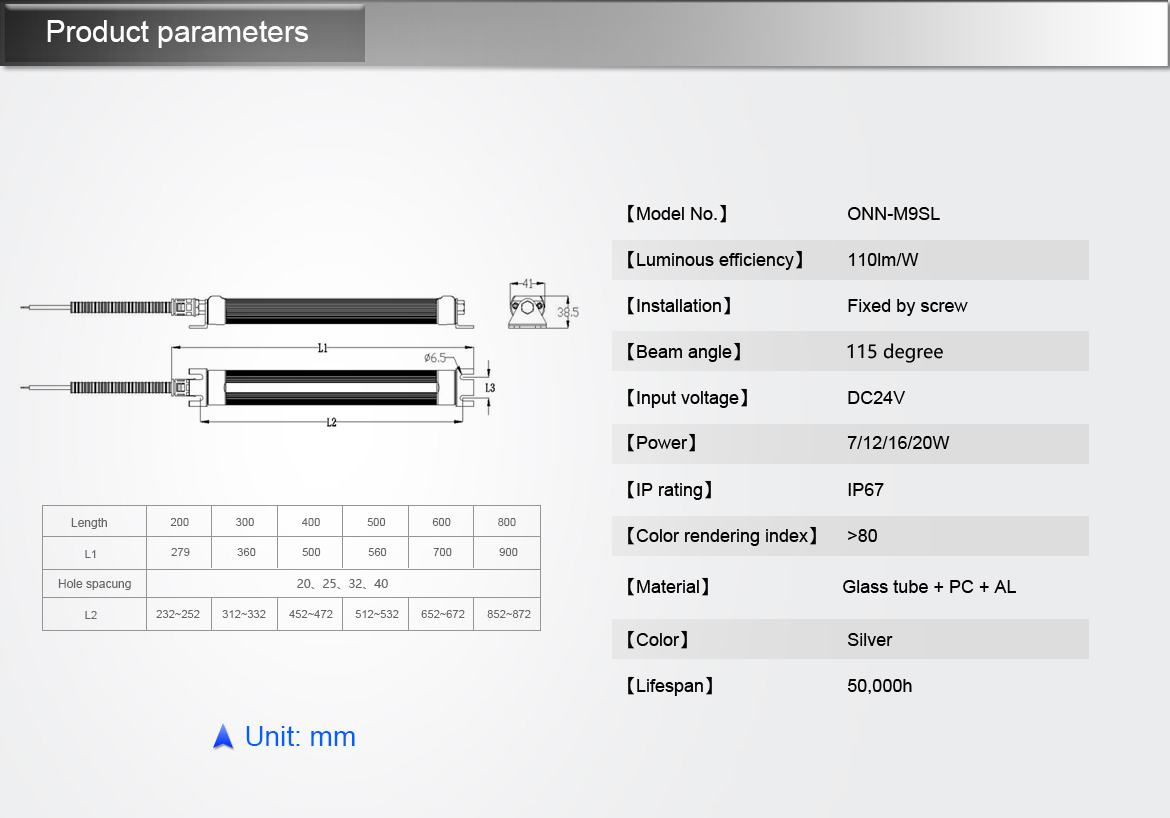

Size Drawing
Application Scenarios

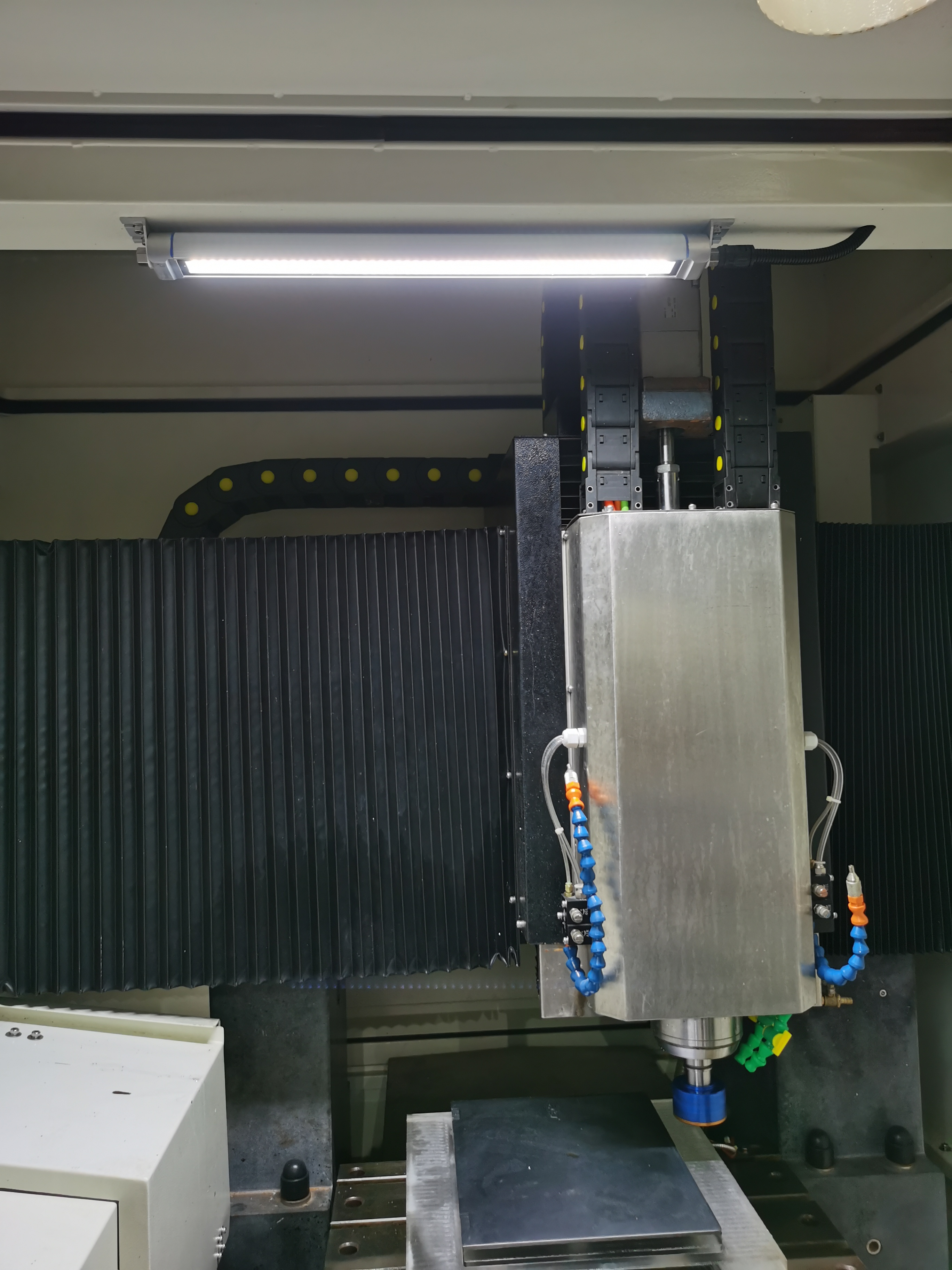

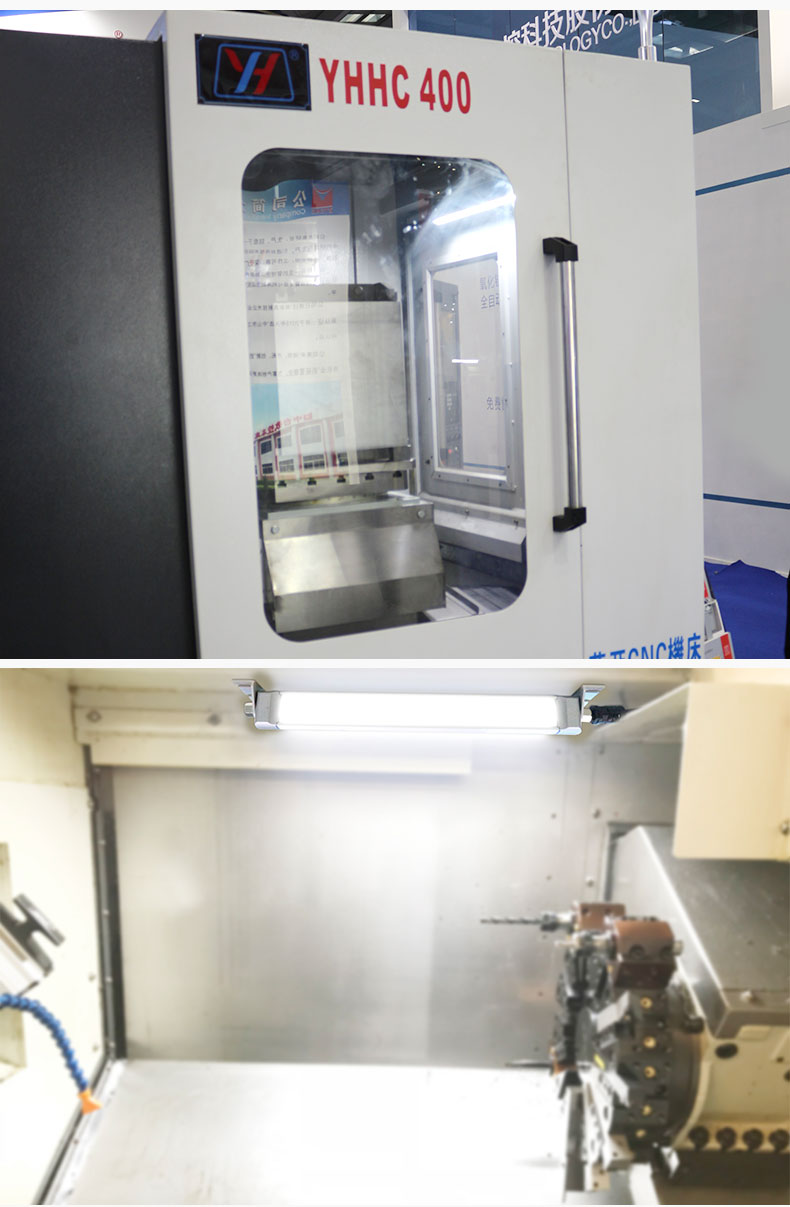

Ideal for CNC machine work (engraving, EDM machines), assembly and repair stations, point lighting in labs, and precision industrial environments.

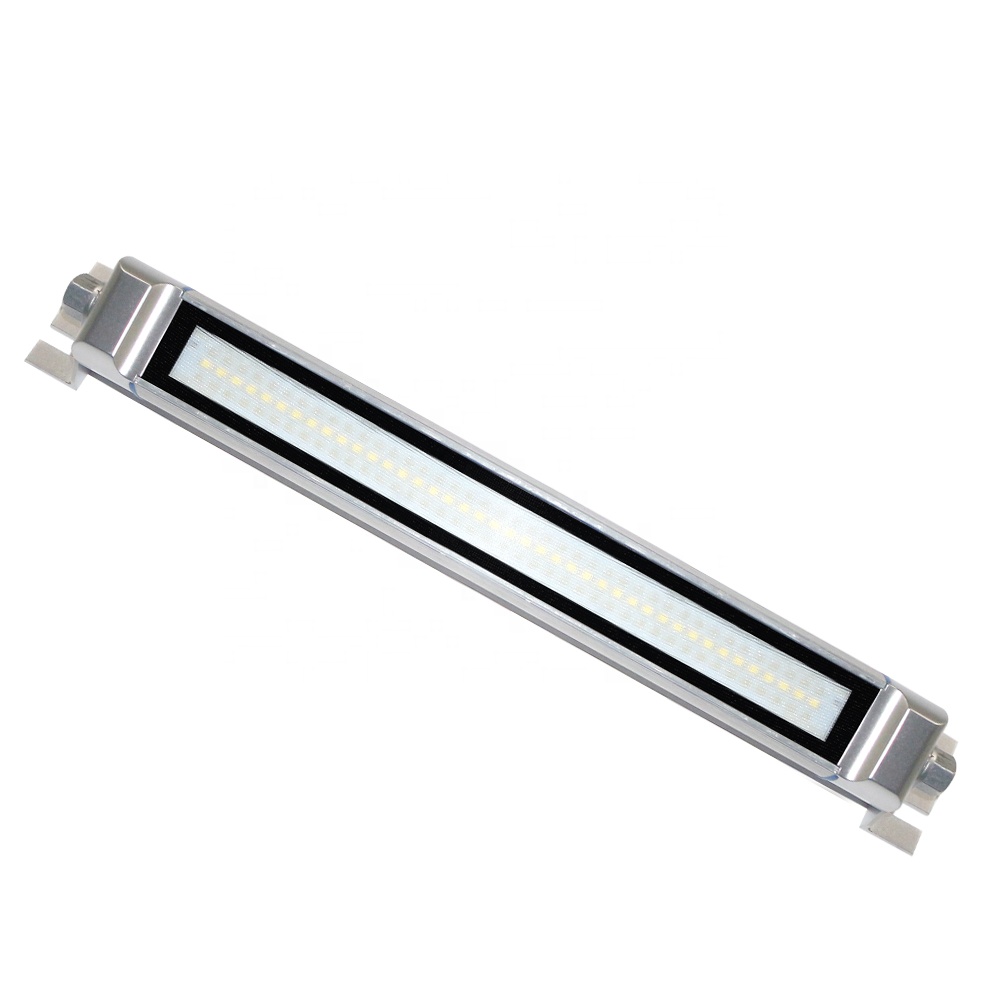

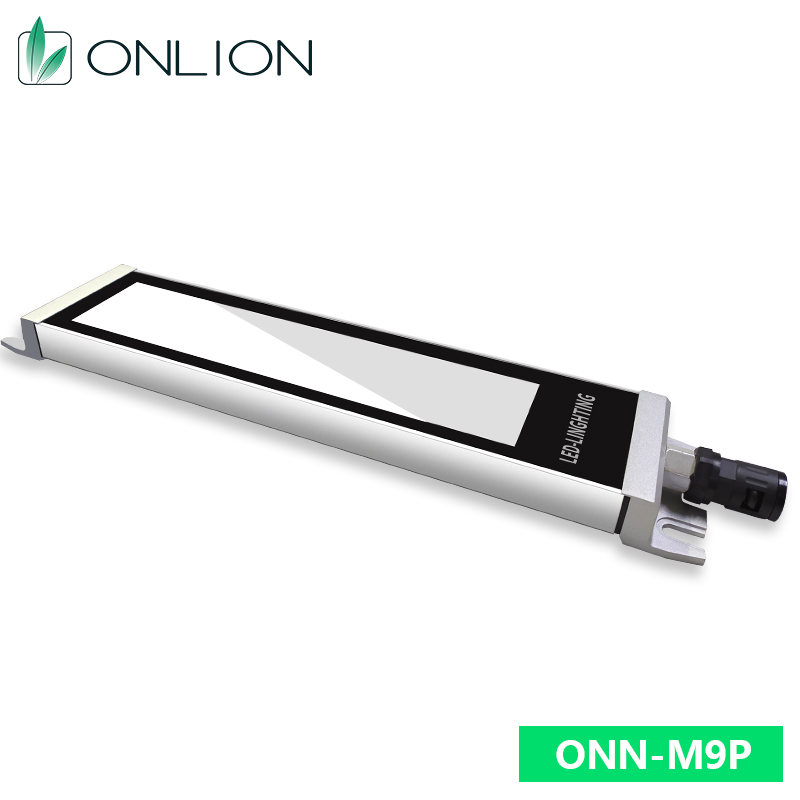

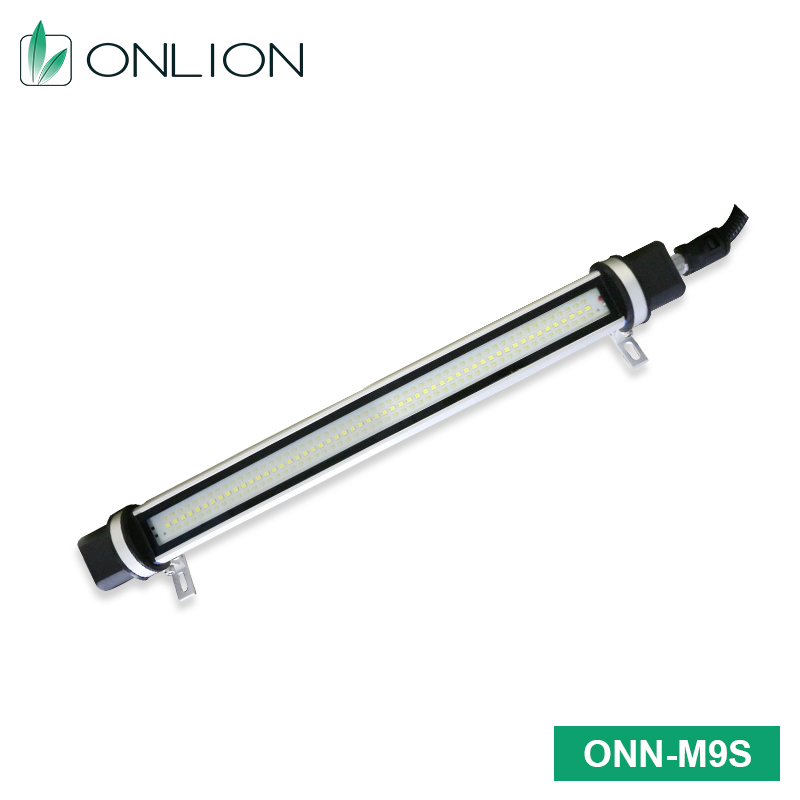

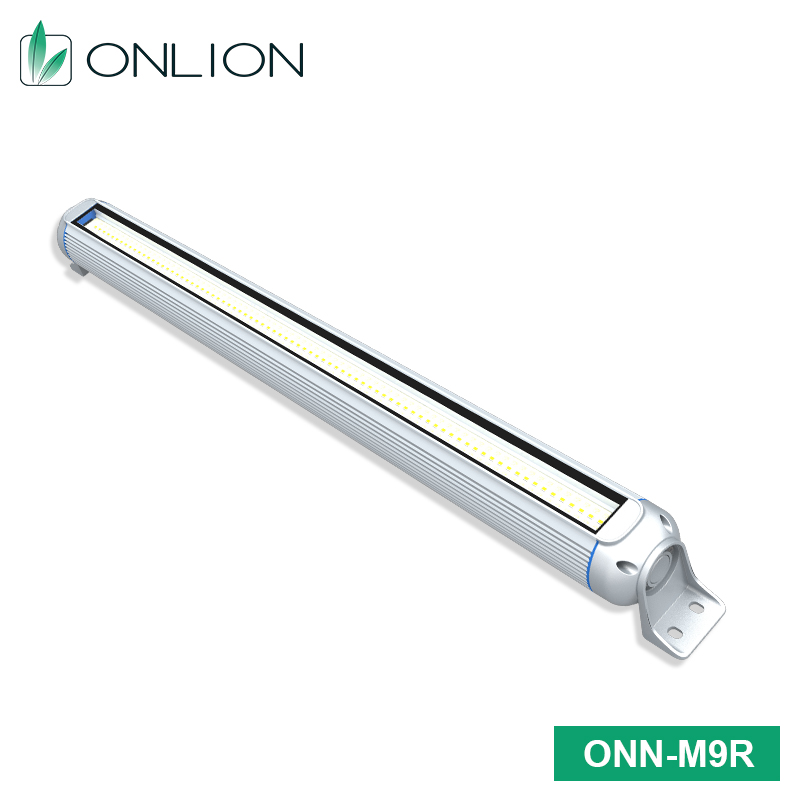

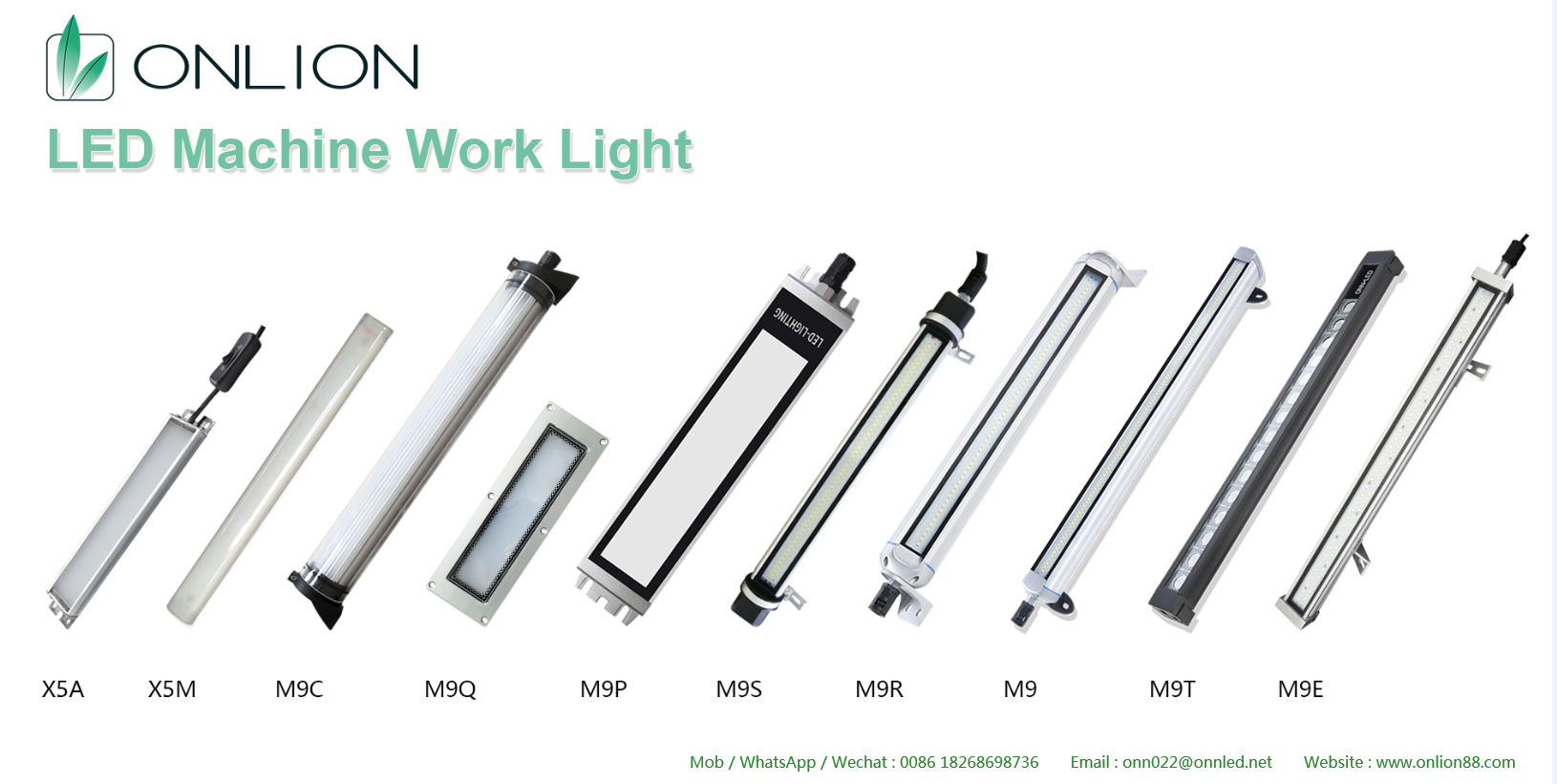

Related Industrial Lighting
Professional Industrial Lighting Solutions

We focus on LED Industrial Lighting including machine lights, warning lights, LED cleanroom lights, and freezer lighting solutions. With over 16 years of experience, our products hold multiple patents and certifications such as CE, RoHS, and FCC. We operate under strict ISO9001 quality management standards to ensure the highest performance for our customers.

Exhibitions & Certifications
Our Services
  • Production and supply of high-quality LED industrial lights (Machine, Signal Tower, Freezer, Cleanroom).
  • Dedicated after-sales support with strict pre-delivery testing.
  • Warranty coverage ranging from 18 to 36 months depending on the product type.
  • Experienced OEM and ODM services with over 16 years of industry expertise.
Frequently Asked Questions
Q1: Is the ONN-M9SL light waterproof and oil-resistant? A: Yes, it features an IP67 rating, making it completely resistant to water, coolants, and detergents commonly used in CNC machining environments.
Q2: What power options are available for this LED bar light? A: We offer four power configurations: 7W (300mm), 12W (400mm), 16W (600mm), and 20W (800mm).
Q3: Can I use this light with both AC and DC power? A: Yes, the light supports two main input options: a wide-range AC100-265V for standard power or AC/DC24V for machine-specific power sources.
Q4: What is the lifespan of the LED chips? A: The light uses high-brightness SMD2835 chips with a rated lifetime of over 50,000 hours.
Q5: What materials are used to ensure durability? A: The light is constructed with an anodized aluminum housing for heat dissipation and a tempered glass cover for impact and chemical resistance.
Q6: Do you provide OEM or customization services? A: Yes, with 16 years of experience in industrial lighting, we provide professional OEM and ODM services to meet specific industrial requirements.
